Cylinder heads (page 3 of 12)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Operations in vehicle (24V)

Variants – 3.0 V6 24VCylinder heads · page 3 of 12

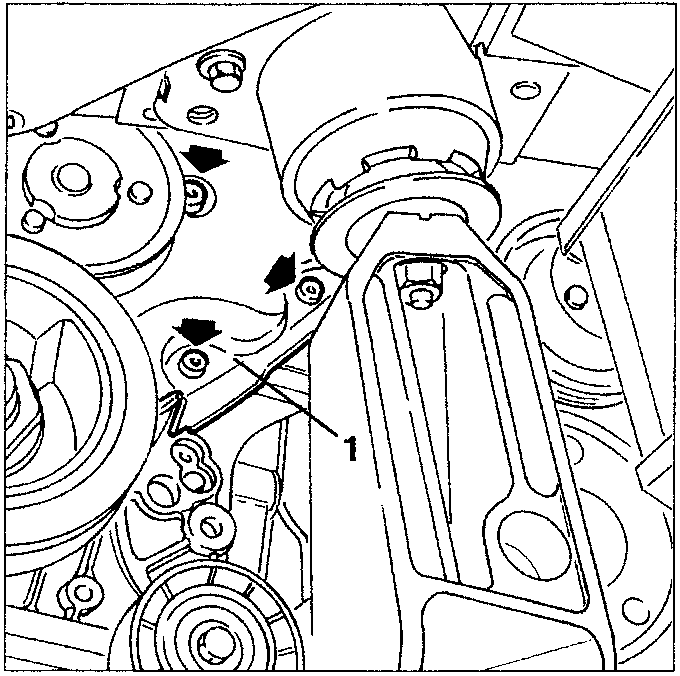

1. Slacken the fastening screws and remove the timing gear belt left lower guard.

1. part name

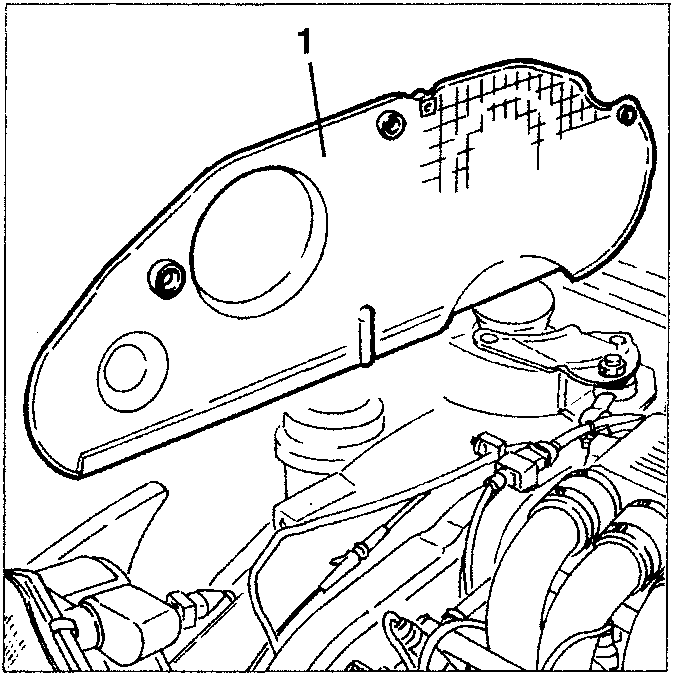

1. Slacken the fastening screws and remove the timing gear belt upper guard.

1. part name

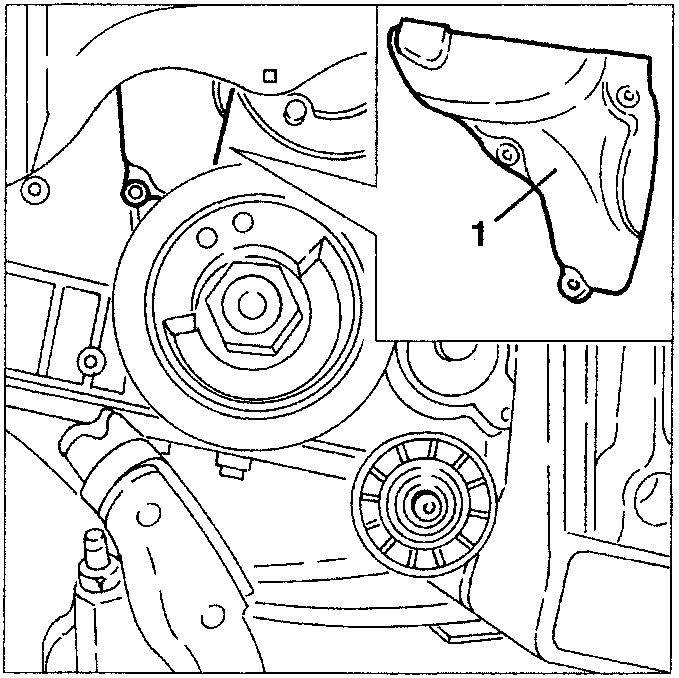

1. Slacken the fastening screws and remove the timing gear belt right lower guard.

1. part name

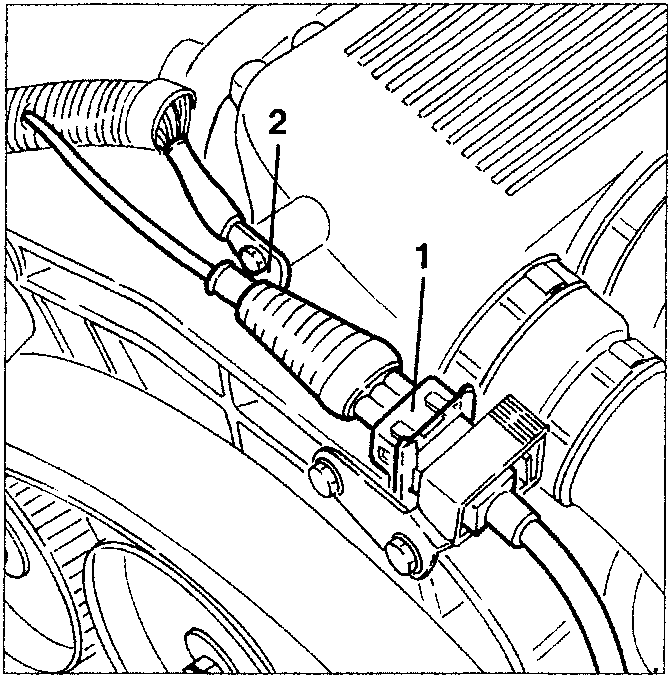

1. Disconnect the electrical connection of the front pinging sensor.
   2. Disconnect the earth cable (front) from the intake box.

1. part name
2. part name

12 General
