Cylinder heads (page 4 of 12)

Make

Alfa Romeo

Model

GTV / Spider GTV and Spider (916) Factory Service Manual

Year

1995–2000

Section

Operations in vehicle (24V)

Variants – 3.0 V6 24VCylinder heads · page 4 of 12

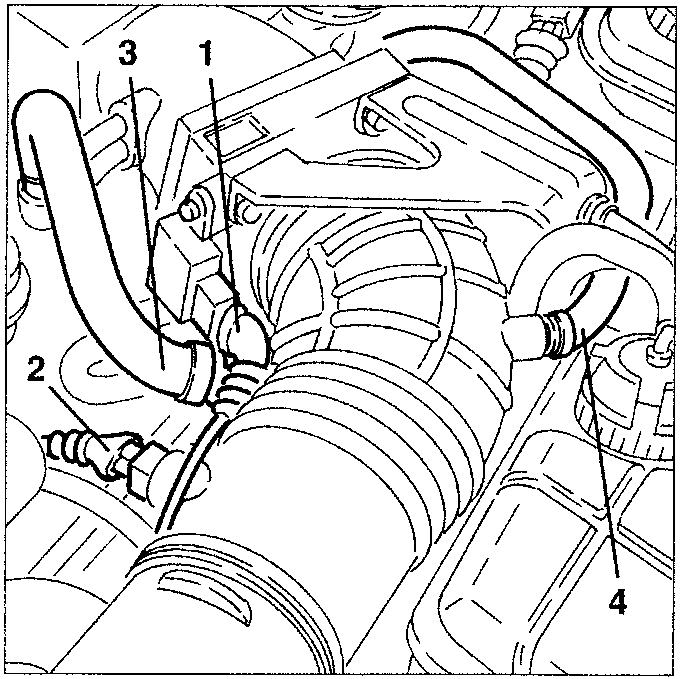

1. Disconnect the electrical connection from the throttle potentiometer.
2. Disconnect the electrical connection from the intake air temperature sensor.
3. Disconnect the oil vapour recovery pipe leading from the right cylinder head from the corrugated sleeve.
4. Disconnect the air takeoff pipe for the constant idle speed device from the corrugated sleeve.

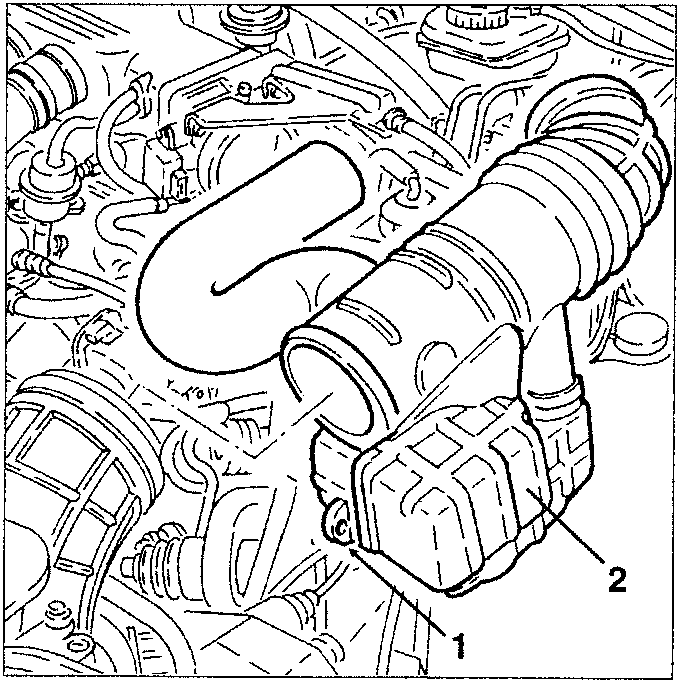

1. button fastening the first section of the corrugated sleeve to the resounder.
2. Slacken the two fastening clamps and remove the second section of the corrugated sleeve complete with resounders.

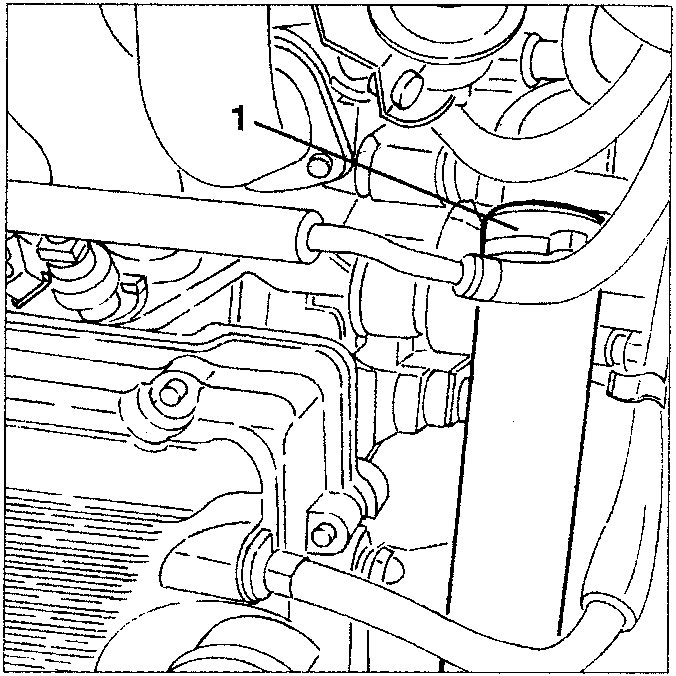

1. Disconnect the radiator coolant delivery sleeve from the thermostatic cup.

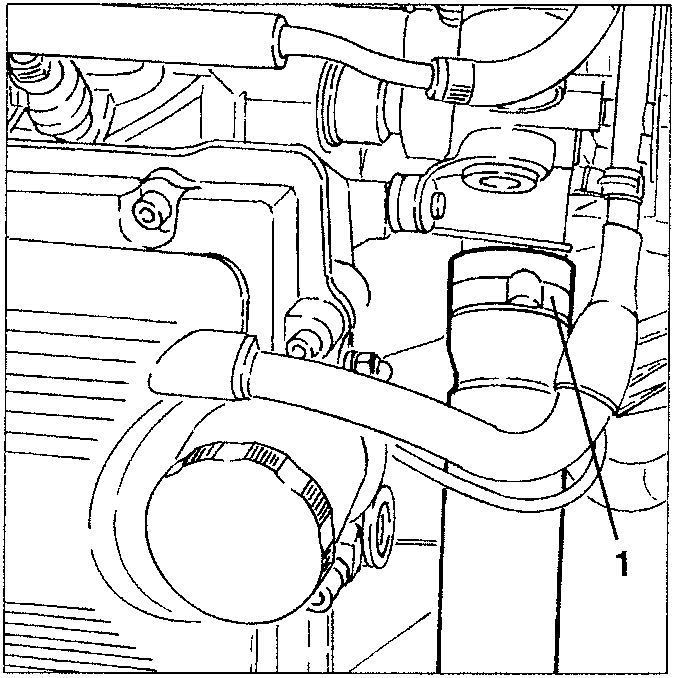

1. Disconnect the radiator coolant return sleeve from the thermostatic cup.
