Variants – 3.0 V6 24VCylinder heads · page 5 of 12
  1. Disconnect the throttle body coolant outlet pipe from the expansion tank.
  2. Disconnect the accelerator cable from the throttle cam.

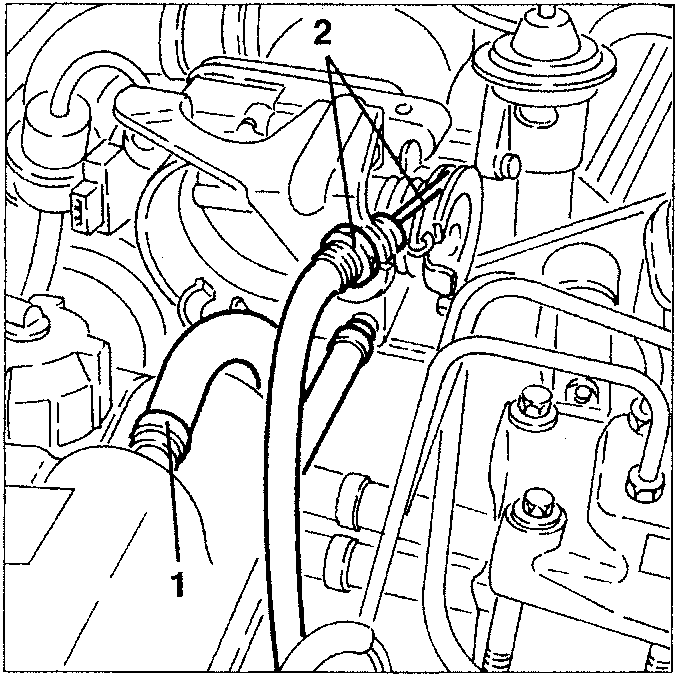

Throttle body coolant outlet pipe and accelerator cable disconnection
  1. Throttle body coolant outlet pipe
  2. Accelerator cable
  3. Disconnect the electrical connection from the engine coolant temperature transmitter (NTC).
  4. Disconnect the electrical connection from the coolant temperature transmitter and max. temperature thermal contact.

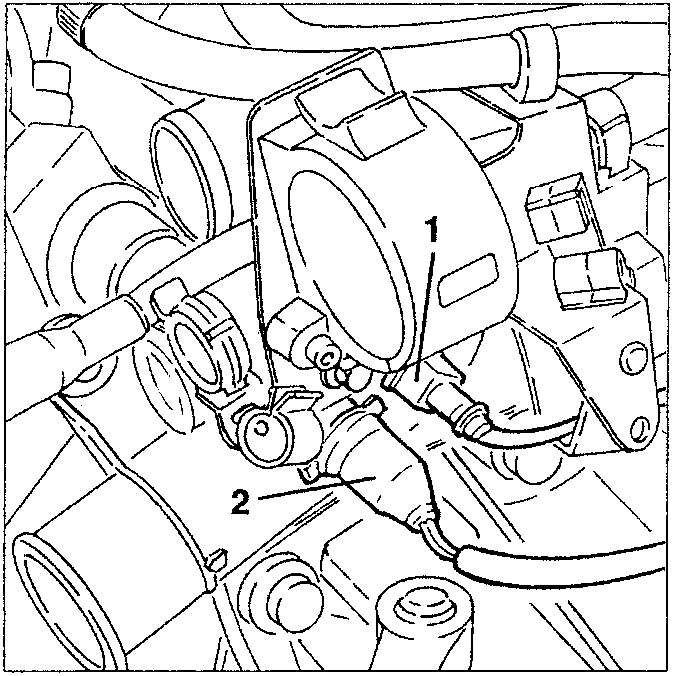

Engine coolant temperature transmitter and max. temperature thermal contact disconnection
  1. Engine coolant temperature transmitter
  2. Max. temperature thermal contact
  3. Release the injection wiring connector from the support bracket.
  4. Disconnect the electrical connection of the cam angle sensor.

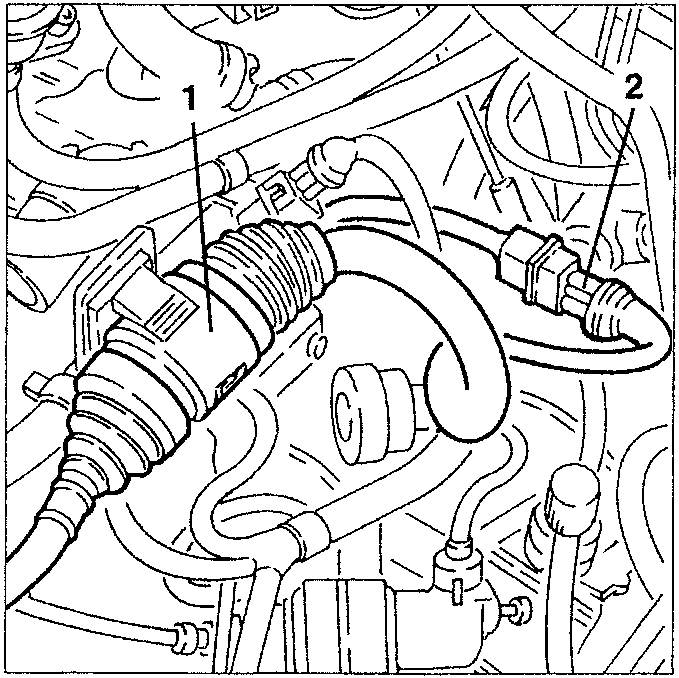

Injection wiring connector and cam angle sensor disconnection
  1. Injection wiring connector
  2. Cam angle sensor
  3. Slacken the fastening screws and remove the bracket supporting the injection wiring connector and fastening the pipes.

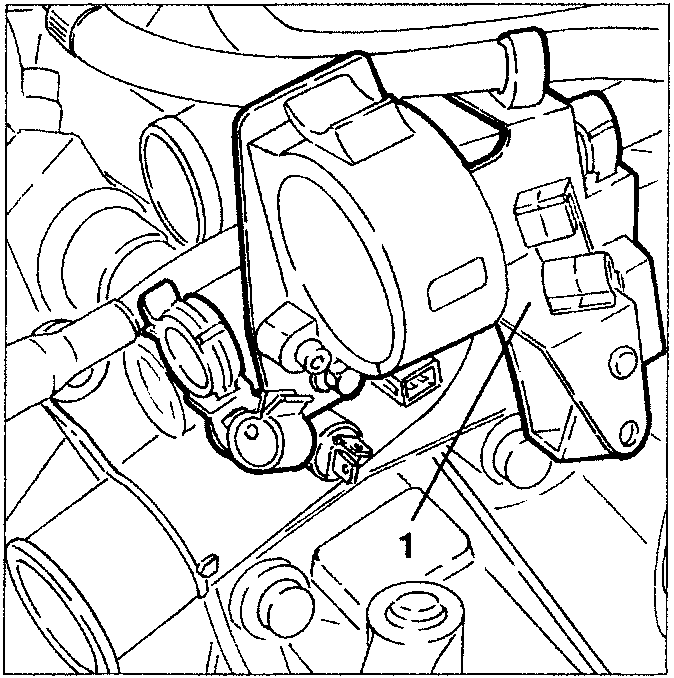

Bracket supporting injection wiring connector and pipes
  1. Bracket
