Oil pump (page 2 of 3)

1. Using a suitable wrench, slacken and remove the oil filter.

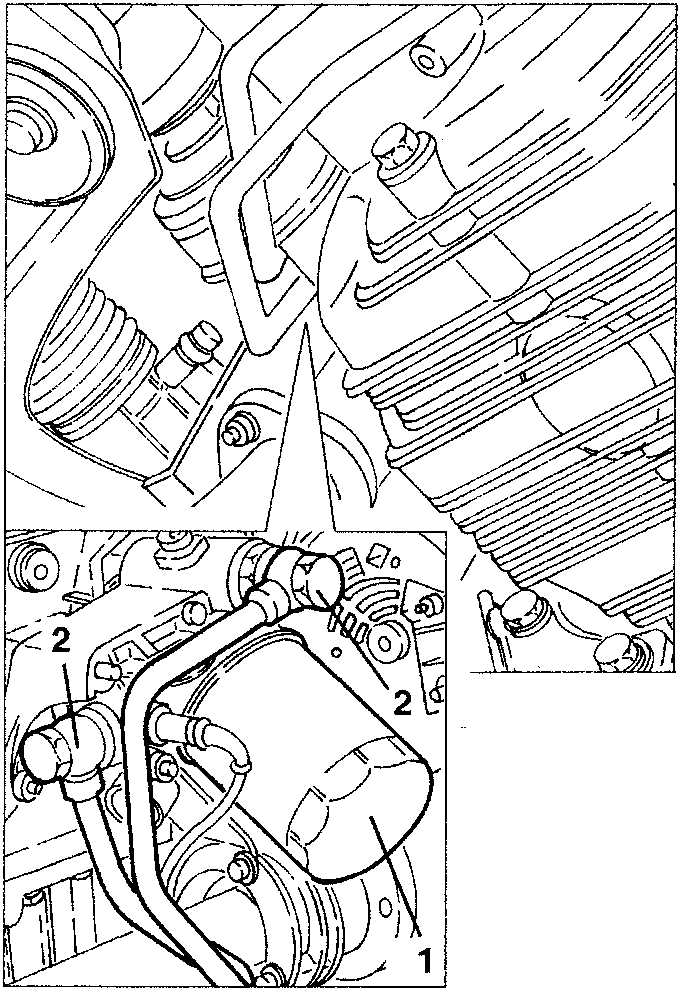

2. From the oil filter support disconnect the fittings of the radiator oil delivery and return pipes.

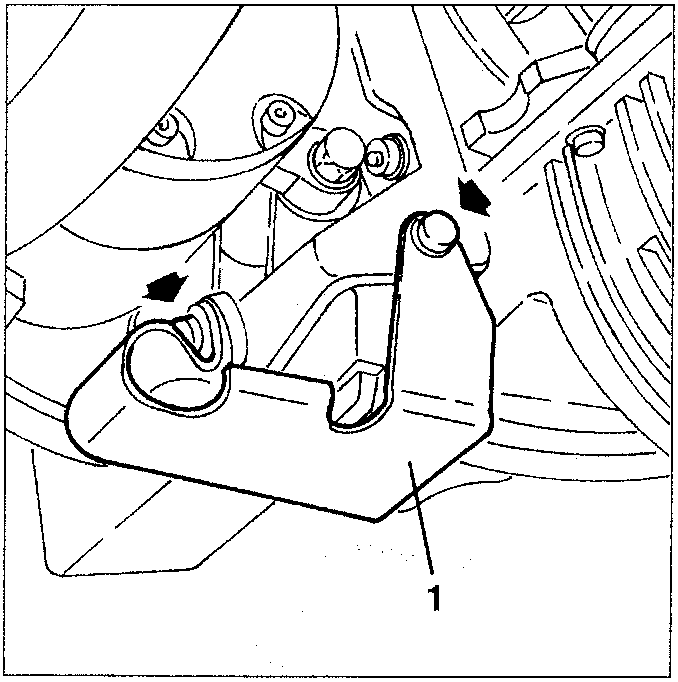

1. Slacken the fastening screws and remove the engine oil delivery and return pipe support bracket to the radiator, then without disconnecting the latter restrain them temporarily so that they do not hinder the following operations.

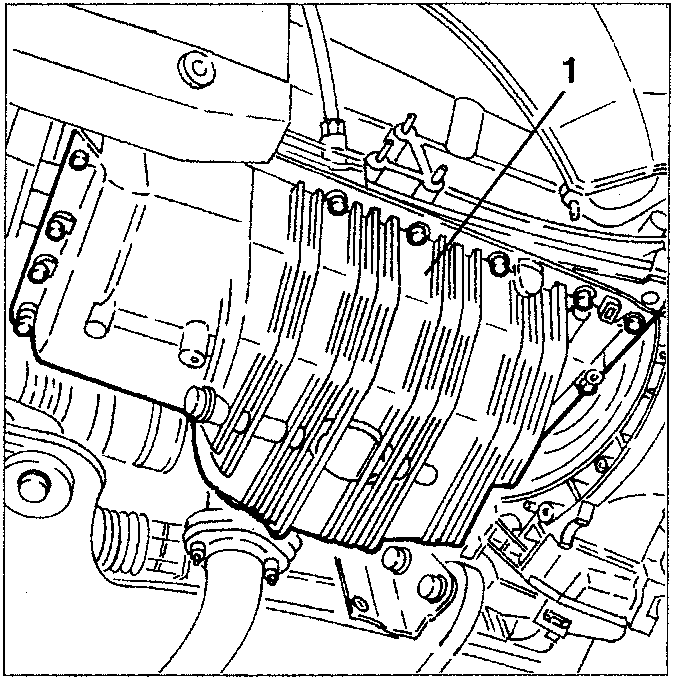

1. Slacken the fastening screws and remove the oil sump.

WARNING: Sealant is applied between the oil sump and crankcase to ensure tightness; when the sump is removed it is necessary to cut the sealant taking care not to damage that in the two holes of the rear main bearing cap. If not, restore the sealant inside the holes.

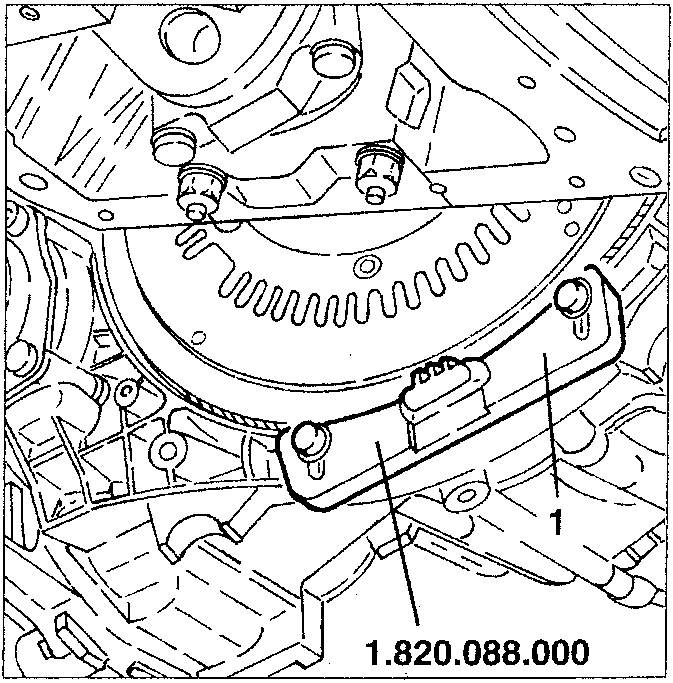

1. Install flywheel stopper tool no. 1.820.088.000.
