02 · Body & interior

Front Wings

Make: Aston Martin
Model: DB9 Factory Workshop Manual
Year: Issue 2, 2005
Section: Front End › Front Wings

01 Body systemFront Wings · page 1 of 2

Front Wings

Specifications

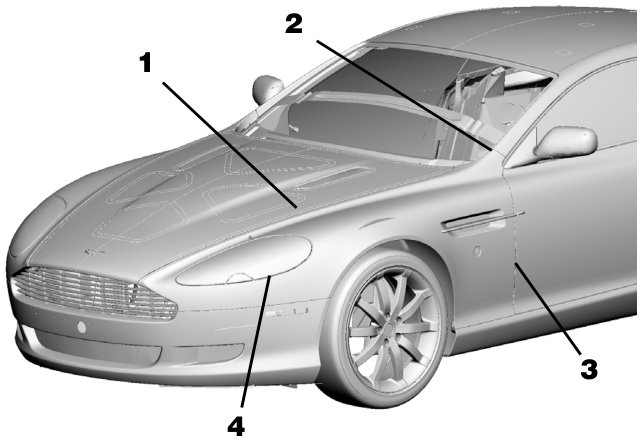

Diagram of the front of a DB9 car with callout lines numbered 1, 2, 3, and 4 pointing to various panel gaps and components.

Wing Standard (mm)
Item	1	2	3	4
Nominal gap	3.5	2.0	3.75	3.0
Tolerance	±0.75	+0.5 / -0.0	± 0.75	±0.5
Flush	-0.0	0.0	0.0	-0.5
Tolerance	±1.5	+0.0 / -0.5	±1.5	±0.5
Taper	N/A
Symmetry	N/A

Torque Figures
Description	Nm.	lbs / ft.
Wing Top	8	6
Wing Top Single nut	Tight with 'Threadlock'
Lower Rear	8	6
Slam panel	8	6
PCM Bracket	10	7
Bonnet Damper	25	18

Maintenance

Front Wing

Repair Operation Time (ROT)
Item	Code
Front Wing Renew	(LH) 01.02.KB (RH) 01.02.LB

Removal

Disconnect the vehicle battery.
Remove the wing top nut.

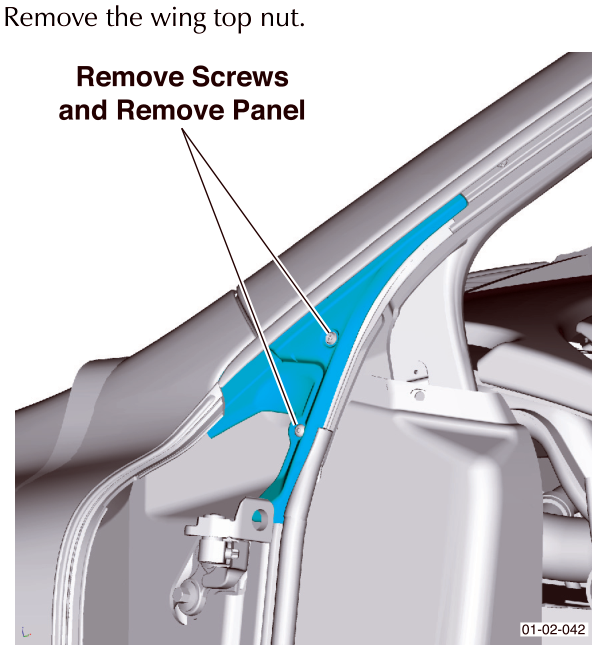

Cutaway diagram showing the upper A-pillar area with a blue highlighted trim panel being removed, indicated by arrows. Text reads 'Remove Screws and Remove Panel'.

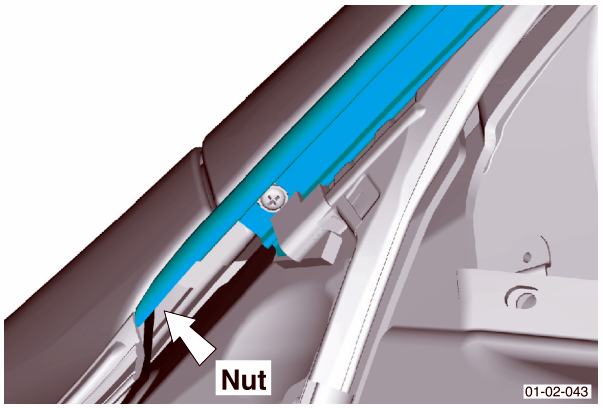

Cutaway diagram showing the lower A-pillar area with a blue highlighted trim panel and an arrow pointing to a nut labeled 'Nut'.

If using a two post vehicle lift, remove the screws that secure the rear section of the road wheel arch liner. Hold back the rear section of the road wheel arch liner to allow the foot of the vehicle lift to be positioned correctly. (Refer to 'Jacking Points', page I-I-IX)

Remove the front road wheel and road wheel arch liner.
