Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005)02 · 01 Body system
02 · Body & interior

Front Wings (page 2 of 2)

Make
Aston Martin
Model
DB9 Factory Workshop Manual
Year
Issue 2, 2005
Section
Front End
01 Body systemFront Wings · page 2 of 2

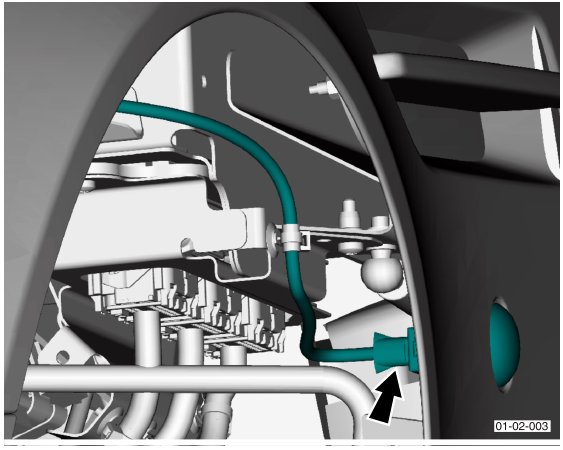

  1. Disconnect the side repeater lamp wiring harness plug.
Diagram showing the side repeater lamp wiring harness plug connection inside the wheel arch area.

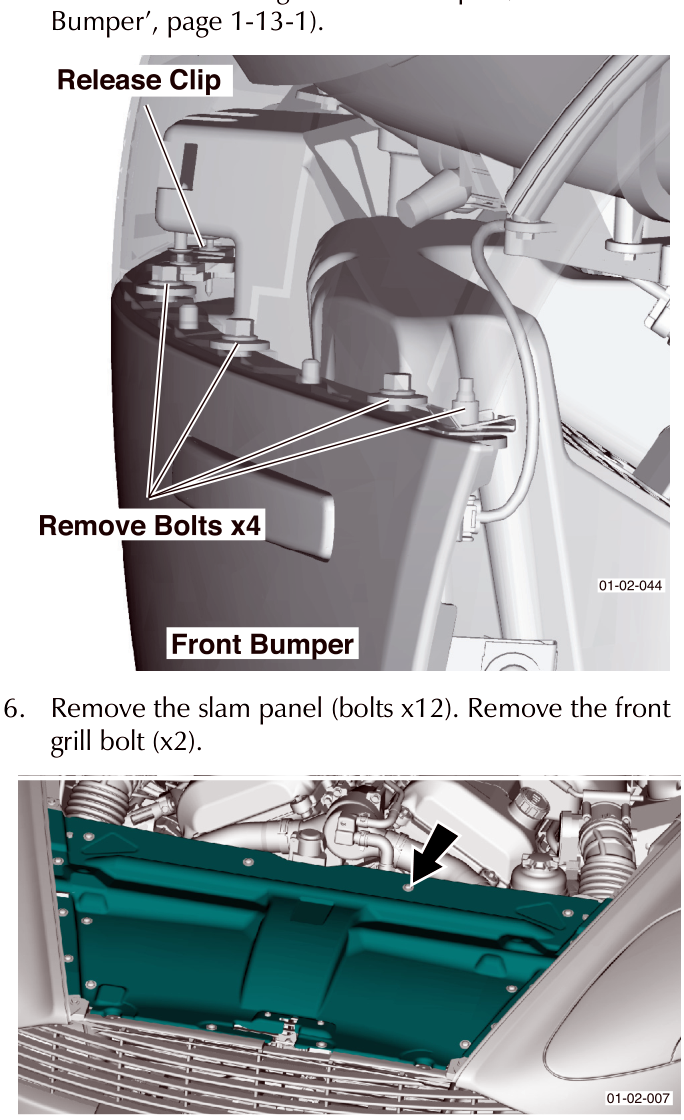

  1. Disconnect the wing from the bumper (Refer to ‘Front Bumper’, page 1-13-1).
Diagram of the front bumper showing release clips and four bolts to remove.
  1. Remove the slam panel (bolts x12). Remove the front grill bolt (x2).

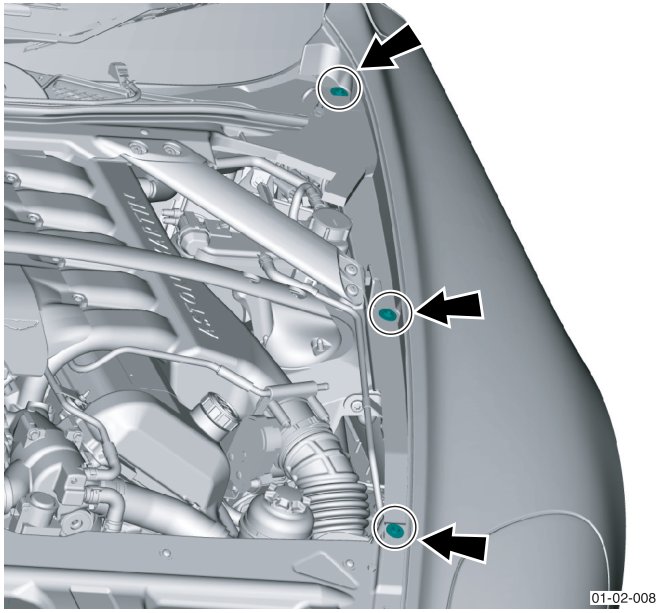

  1. Remove bolts (x3).
Diagram showing three bolts located along the edge of the engine bay near the wing.
