Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005)02 · 01 Body system
02 · Body & interior

Handles and Lock Mechanisms: Specifications

Make
Aston Martin
Model
DB9 Factory Workshop Manual
Year
Issue 2, 2005
Section
Handles and Lock Mechanisms › Specifications
01 Body systemSpecifications

Specifications

Torque Figures
DescriptionNmlb. / ft.
Door handle54
Latch97

Maintenance

Door Handle / Latch Unit

Repair Operation Time (ROT)
ItemCode
Door Catch and Outer LockLH01.14.MB
RH01.14.NB

Removal

  1. Disconnect the vehicle battery.
  2. Remove the door handle (Bolts x2).

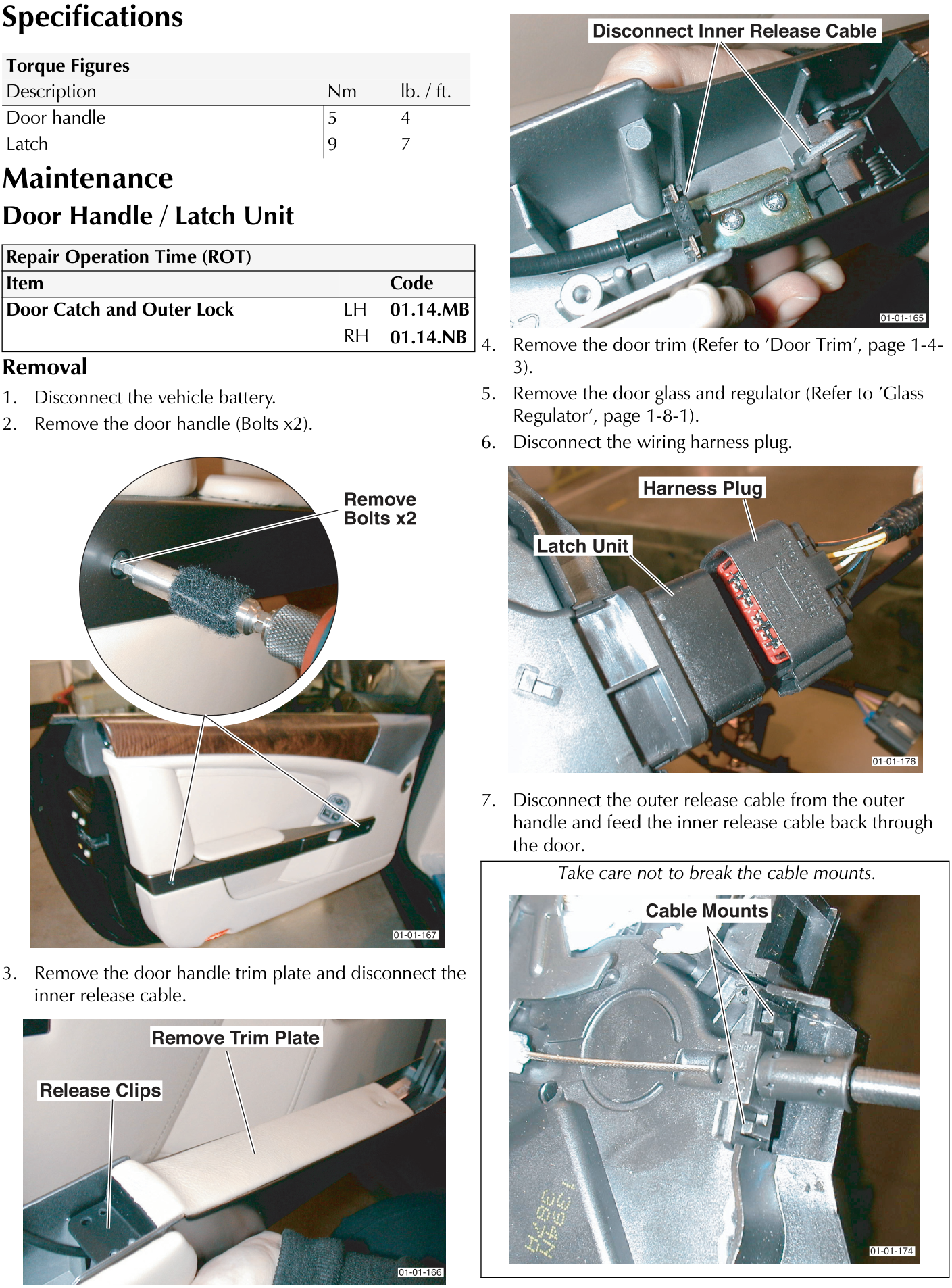

A close-up view of a tool removing bolts from the interior door handle, with an inset circle highlighting the bolt location.
  1. Remove the door handle trim plate and disconnect the inner release cable.
  1. Remove the door trim (Refer to 'Door Trim', page 1-4-3).
  2. Remove the door glass and regulator (Refer to 'Glass Regulator', page 1-8-1).
  3. Disconnect the wiring harness plug.
  1. Disconnect the outer release cable from the outer handle and feed the inner release cable back through the door.

Take care not to break the cable mounts.
