Installation

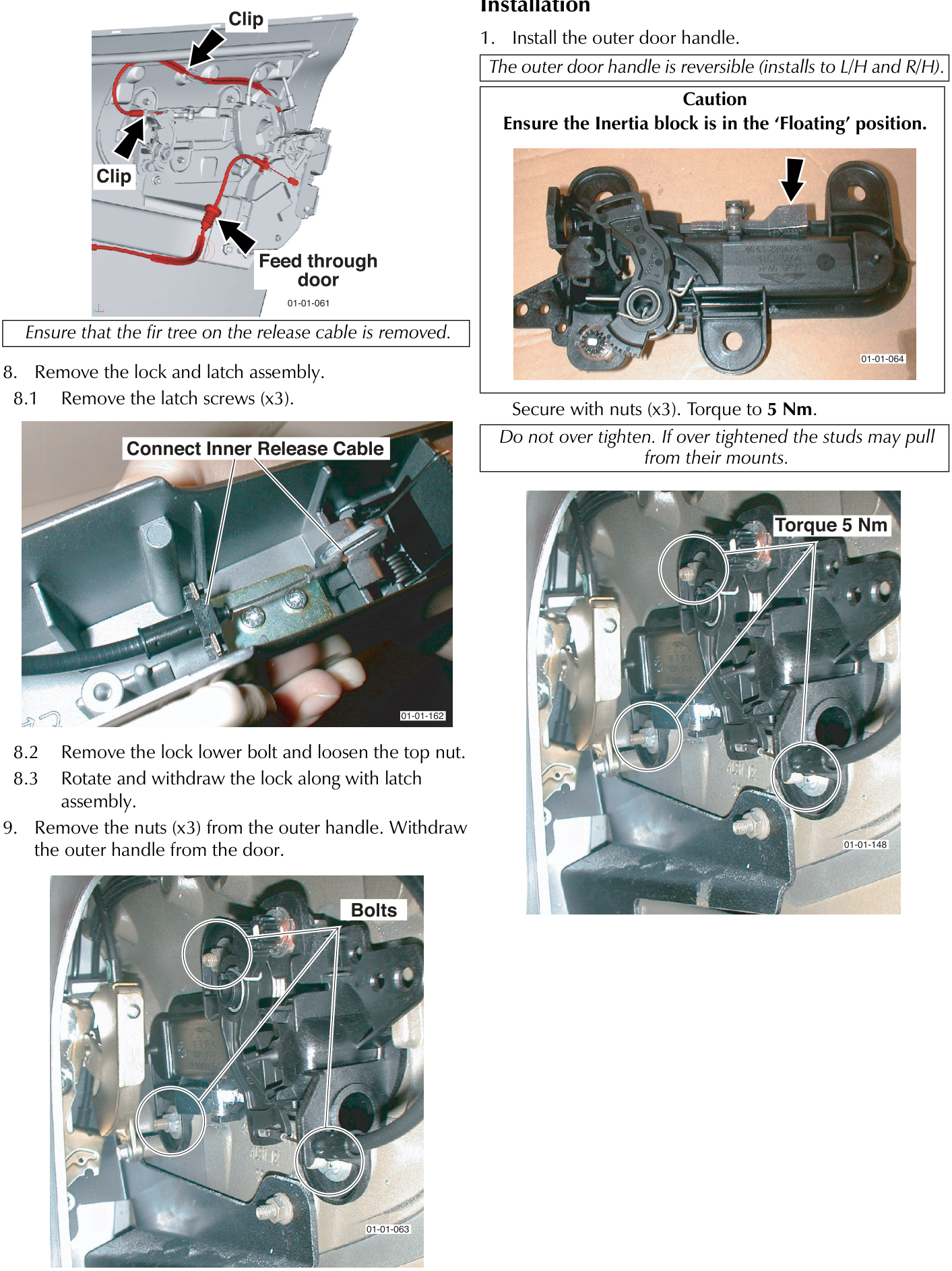

Ensure that the fir tree on the release cable is removed.

8. Remove the lock and latch assembly.
9. Remove the latch screws (x3).

2. Remove the lock lower bolt and loosen the top nut.
3. Rotate and withdraw the lock along with latch assembly.

9. Remove the nuts (x3) from the outer handle. Withdraw the outer handle from the door.

Installation

1. Install the outer door handle.

The outer door handle is reversible (installs to L/H and R/H).

Caution
Ensure the Inertia block is in the ‘Floating’ position.

Secure with nuts (x3). Torque to 5 Nm.

Do not over tighten. If over tightened the studs may pull from their mounts.
