Vehicle Key / Remote Transmitter

Vehicle Key / Remote Transmitter

The vehicle key operates the ignition and the door lock, the remote transmitter operates the central locking and alarm systems.

Do not leave them in the vehicle.

Central Locking System

The Central Locking system consists of lock actuators in both doors, the boot and the fuel flap. Central locking control is through the door modules.

Each lock actuator incorporates a microswitch which signals a change of state when any motor runs to drive the actuator. The microswitches are of the change over type and provide an earth for lock / unlock signals to the door module.

The boot will remain locked or will be unlocked simultaneously with the doors dependant on the boot lock position. The boot lock can be enabled at any time using the remote transmitter irrespective of the Central Locking status.

Remote Transmitter

The remote control system consists of a transmitter and an antenna (radio frequency system). The remote control transmitter for the radio frequency system will operate without the transmitter being directed at the vehicle. The normal range between the transmitter and the antenna is up to 5 meters. Before the remote control system can be used, each transmitter must be initialized to the vehicle. A maximum number of four transmitters can be initialized to any vehicle. All remote transmitters must be initialized at the same time.The keyless entry / remote operated locks will not operate when the ignition key is in the ignition switch.

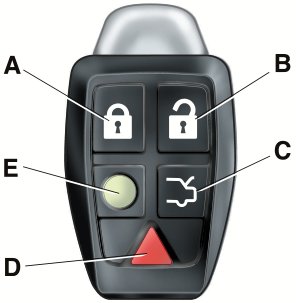

(A) Lock - One step vehicle locking and alarm enable.

The vehicle will deadlock after 25 seconds.

(B) Un-lock - One step vehicle unlocking or two step vehicle unlocking and alarm disable.

(C) Boot Open - Press to enable the boot catch.

(D) Panic Alarm - Activates / deactivates the panic alarm.

(E) Approach Light - Activates the front and rear side lights.

Fuel Filler Assembly

Manual Boot Release

In the event of a total loss of vehicle power the boot can be opened by pulling the manual boot release handle.

Remove the LH rear seat base and undo the two knurled bolts that secure the cover. Remove the cover and pull the boot release.

Boot release assembly
Image to follow

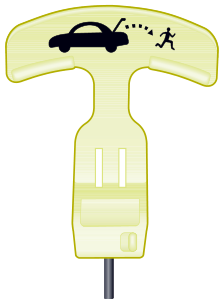

Boot Emergency Release

The boot can be opened from inside the boot by pulling the luminous emergency release handle.
