Installation (page 2 of 2)

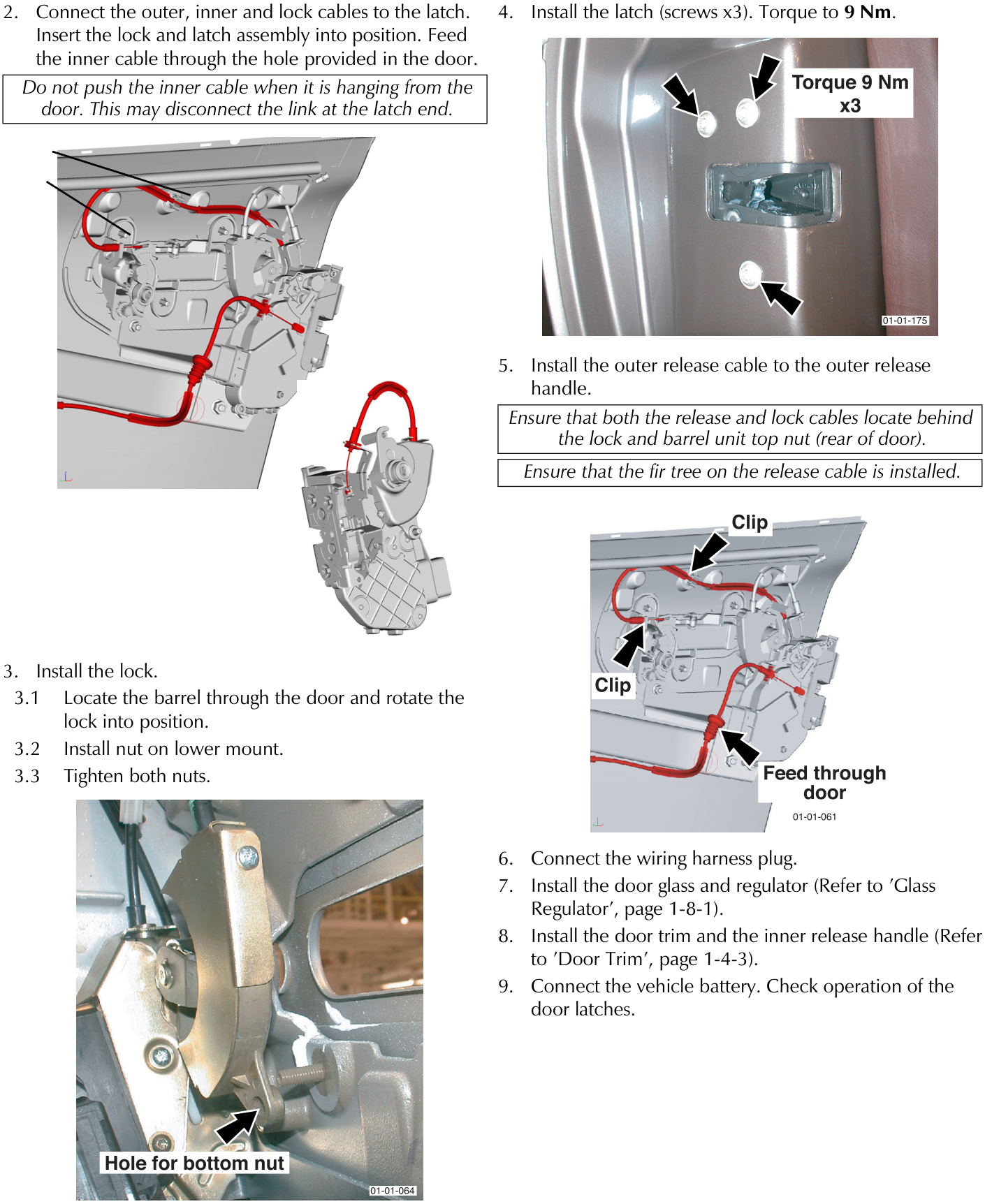

Connect the outer, inner and lock cables to the latch. Insert the lock and latch assembly into position. Feed the inner cable through the hole provided in the door.

Do not push the inner cable when it is hanging from the door. This may disconnect the link at the latch end.

3. Install the lock.
1. Locate the barrel through the door and rotate the lock into position.
2. Install nut on lower mount.
3. Tighten both nuts.

4. Install the latch (screws x3). Torque to 9 Nm.

5. Install the outer release cable to the outer release handle.

Ensure that both the release and lock cables locate behind the lock and barrel unit top nut (rear of door).

Ensure that the fir tree on the release cable is installed.

6. Connect the wiring harness plug.
7. Install the door glass and regulator (Refer to ‘Glass Regulator’, page 1-8-1).
8. Install the door trim and the inner release handle (Refer to ‘Door Trim’, page 1-4-3).
9. Connect the vehicle battery. Check operation of the door latches.
