Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005)02 · 01 Body system
02 · Body & interior

Wiper Arms

Make
Aston Martin
Model
DB9 Factory Workshop Manual
Year
Issue 2, 2005
Section
Wipers and Washer System › Wiper Arms
01 Body systemWiper Arms
8. Install the wiper arms. Position the wiper arms as per their position on removal. Passenger Arm Torque M10 nut to 24 Nm. Torque M6 (x4) nuts to 6 Nm. Driver Arm Torque M8 nut to 17 Nm.

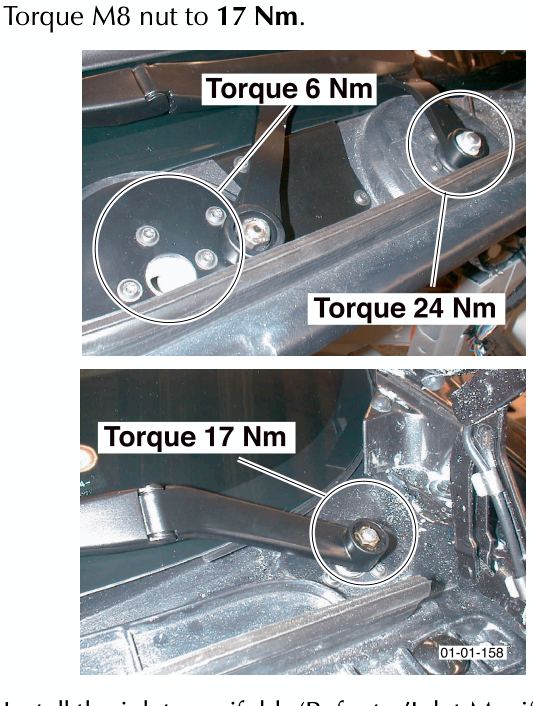

Two images showing torque specifications for wiper arm components: top image indicates Torque 6 Nm and Torque 24 Nm; bottom image indicates Torque 17 Nm.
9. Install the inlet manifolds (Refer to ‘Inlet Manifold’, page 3-2-7). 10. Connect the vehicle battery.

Wiper Arms

Repair Operation Time (ROT)
ItemCode
Wiper Arm RenewLHF 01.16.KG
RHF 01.16.LB

Removal

Note the position of the wiper arms on the glass for installation.

Do not remove the nut that secures the idle arm to the wiper spindle. Remove the 3 bolts securing the idle arm mounting plate.

1. Remove the following screws and nuts.

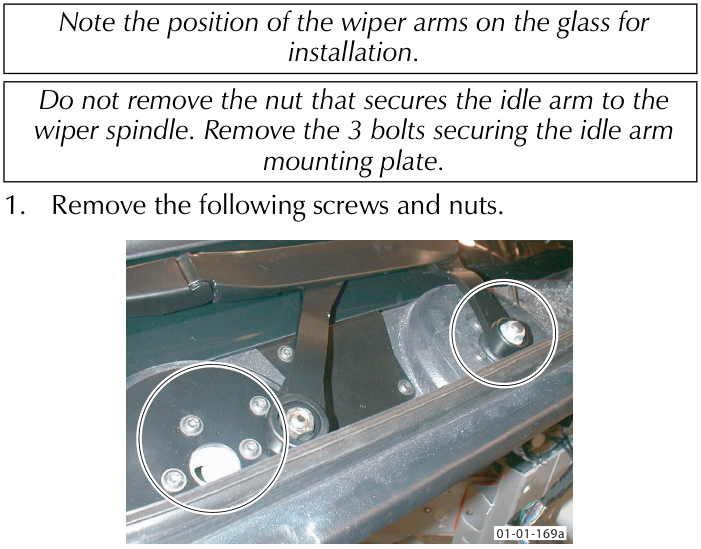

Image showing the idle arm mounting plate with two circled areas indicating locations of screws and nuts.

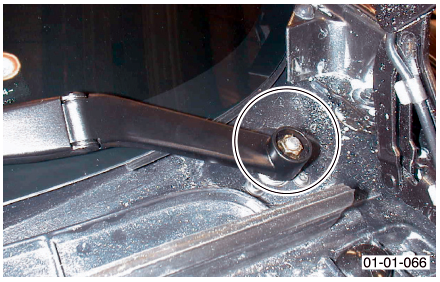

Close-up image of a wiper arm pivot point with a circled area highlighting a nut.

Installation

1. Install the wiper arms. Position the wiper arms as per their position on removal. Passenger Arm Torque M10 nut to 24 Nm. Torque M6 (x4) nuts to 6 Nm. Driver Arm Torque M8 nut to 17 Nm.

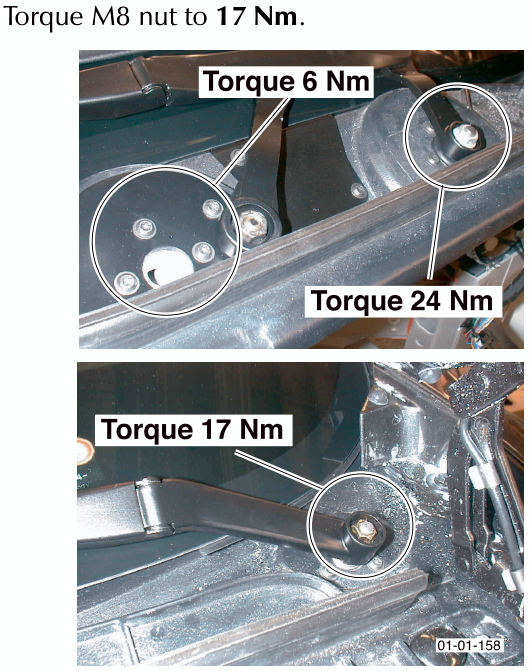

Torque specifications for M8 nuts on vehicle chassis components
