Wipers and Washer System: Specifications
- Make
- Aston Martin
- Model
- DB9 Factory Workshop Manual
- Year
- Issue 2, 2005
- Section
- Wipers and Washer System › Specifications
01 Body systemSpecifications · page 1 of 2

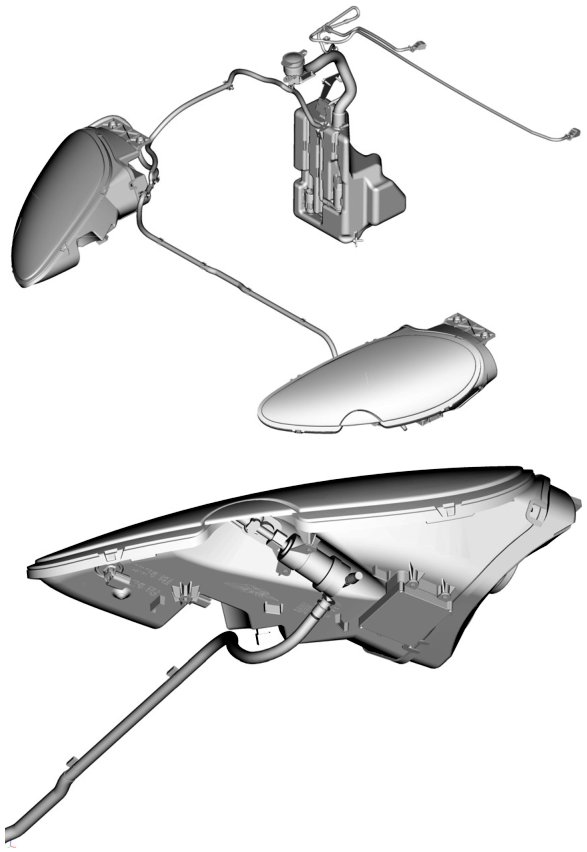

The headlamp washers operate once per ignition cycle and are activated the first time the window washers are operated.
Headlamp washing is only available when the headlamps are switched on.
Specifications
Torque Figures
| Description | Nm | lb. / ft. | |
|---|---|---|---|
| Wiper link to wiper motor | 35-42 | 26-31 | |
| Wiper motor mounting bolts | 7-10 | 5.5-7.5 | |
| Wiper assembly plate | M6 Torx | 6 | 4.5 |
| M6 bolt | 8 | 6 | |
| Brake servo nuts | 21-24 | 15.5-18 | |
| Brake master cylinder nuts | 25 | 18.5 | |
| Wiper arm (Driver) | 17 | 13 | |
| Wiper arm (Passenger) | M10 | 24 | 18 |
| M6 | 6 | 4.5 |
Maintenance
Windscreen Wiper Motor
| Repair Operation Time (ROT) | |
|---|---|
| Item | Code |
| Wiper Motor Renew | 01.16.HB |
Removal
- Disconnect the vehicle battery.
- Remove the inlet manifolds (Refer to ‘Inlet Manifold’, page 3-2-7).
- Remove the wiper arms. Note the position of the wiper arms on the glass for installation.
Do not remove the nut that secures the idle arm to the wiper spindle. Remove the 4 bolts securing the idle arm mounting plate.
Image to follow

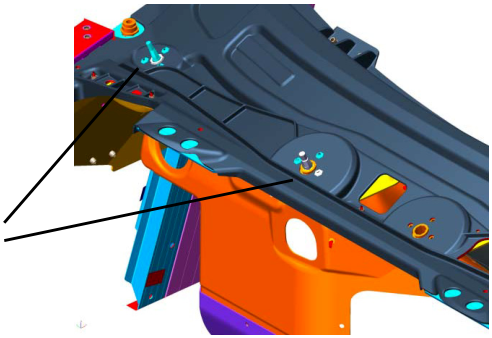

- Remove the wiper box to scuttle panel bolts (x6).
