Wipers and Washer System › Installation
01 Body systemInstallation
  1. Disconnect the wiper linkage from the wiper motor (bolt x1). Withdraw the wiper motor.

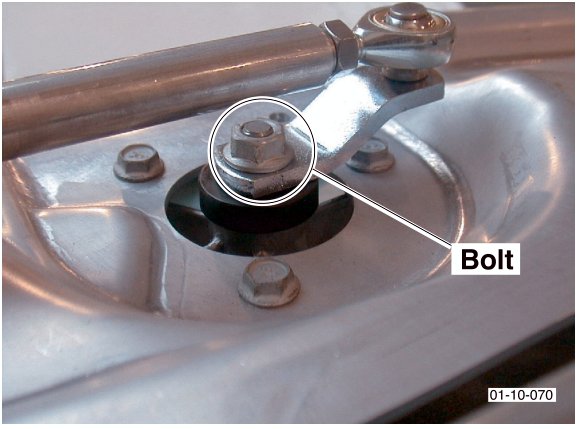

Close-up of a bolt securing the wiper linkage to the wiper motor assembly

Installation

  1. Connect the wiper linkage to the wiper motor (bolt x1) using service tool (Refer to '501-112 (Wiper Linkage to Wiper Motor)', page 20-1-8). Torque nut to 35-42 Nm.

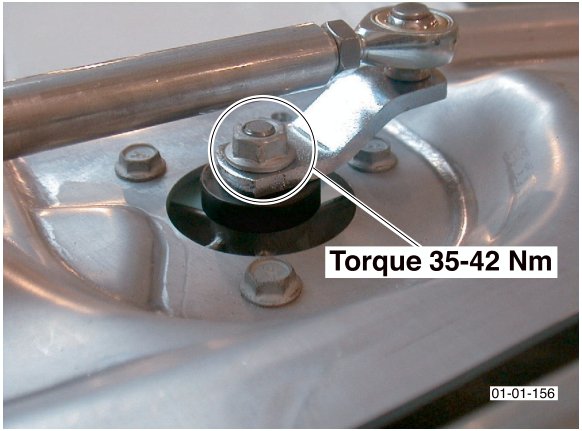

Close-up showing the torque specification of 35-42 Nm on the wiper linkage connection bolt
  1. Install the wiper motor bolts (x3).
    Torque bolts to 7-10 Nm.

3. Install the wiper assembly plate

  1. Torque bolts to 8 Nm.

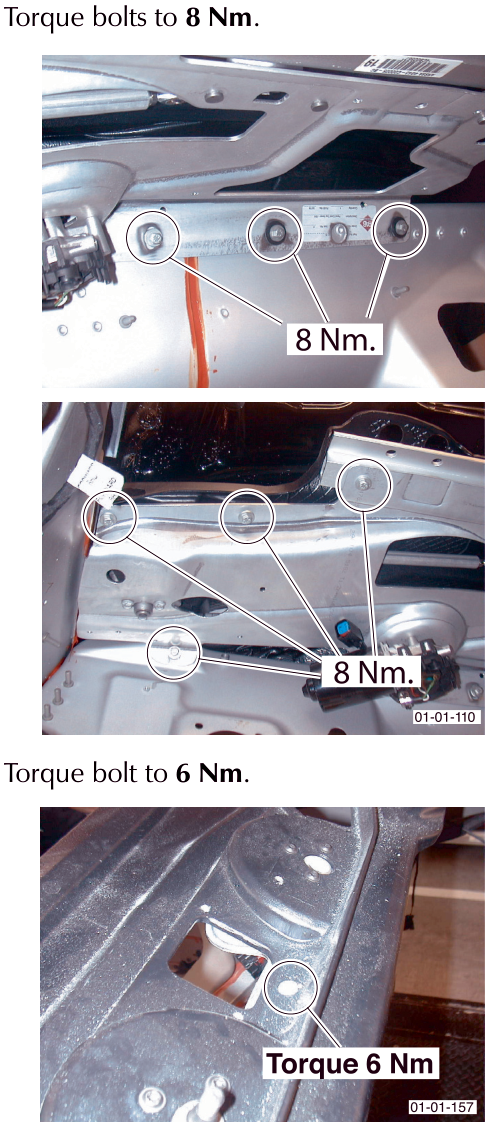

Two images showing the installation of the wiper assembly plate with torque specifications of 8 Nm indicated on multiple bolts
  1. Torque bolt to 6 Nm.
  1. Connect the engine breather hose to the rear of the camshaft cover.
  2. From inside the vehicle install the brake servo fixings. Torque to 21-24 Nm.
  3. Install the brake master cylinder. Torque to 25 Nm.
  4. Install the wiper box. Torque bolts to 7-10 Nm.
