Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005)02 · 01 Body system
02 · Body & interior

Wipers and Washer System: Specifications (page 2 of 2)

Make
Aston Martin
Model
DB9 Factory Workshop Manual
Year
Issue 2, 2005
Section
Wipers and Washer System
01 Body systemSpecifications · page 2 of 2

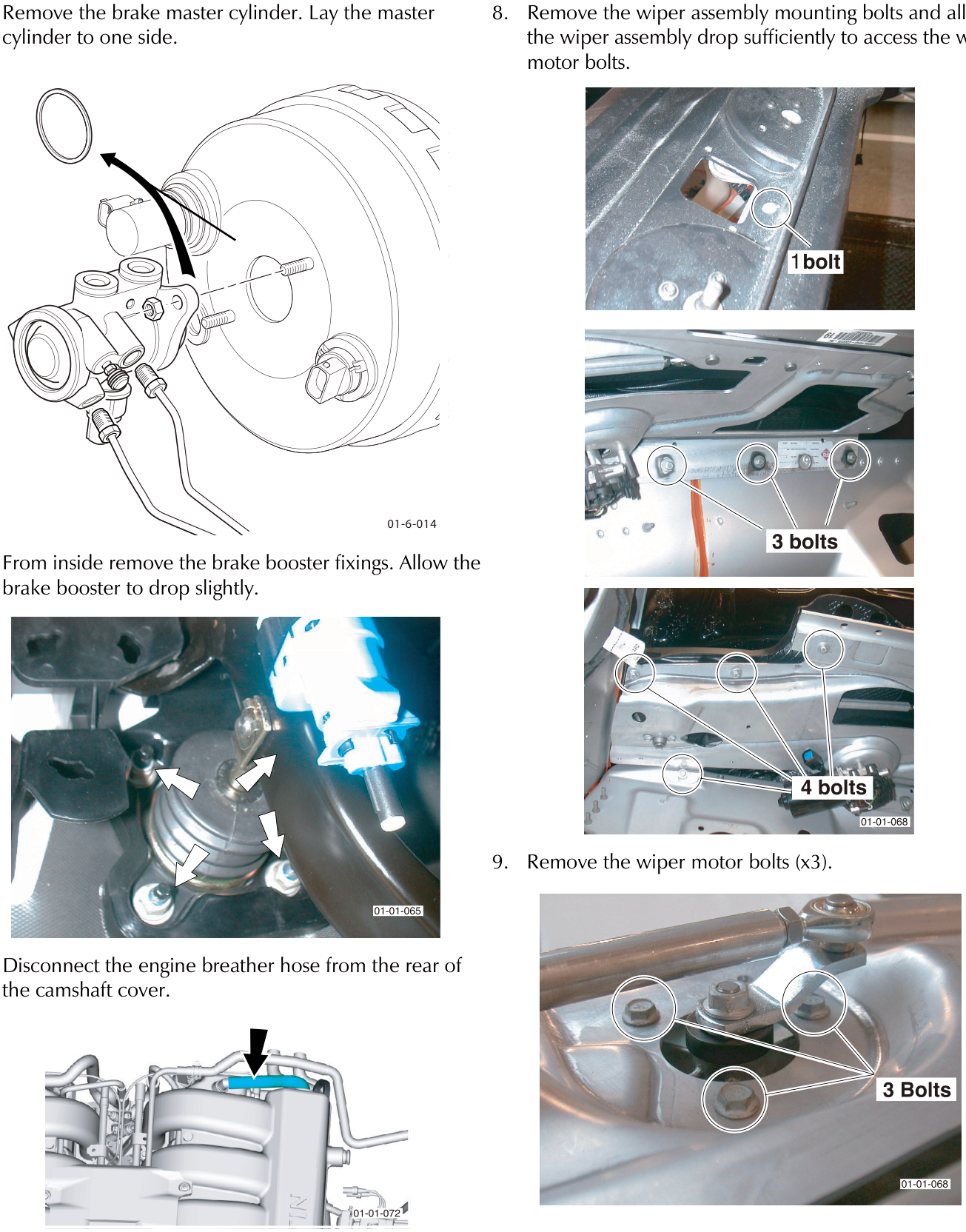

  1. Remove the brake master cylinder. Lay the master cylinder to one side.
Line drawing of a brake master cylinder being removed from a brake booster, with an O-ring shown separating. Figure number 01-6-014.
  1. From inside remove the brake booster fixings. Allow the brake booster to drop slightly.
  1. Disconnect the engine breather hose from the rear of the camshaft cover.
  1. Remove the wiper assembly mounting bolts and allow the wiper assembly drop sufficiently to access the wiper motor bolts.
  1. Remove the wiper motor bolts (x3).
