Inspection

Inspection

1. Raise and support the vehicle.

Prior to carrying out any inspection of the ball joints, inspect the road wheel bearings.

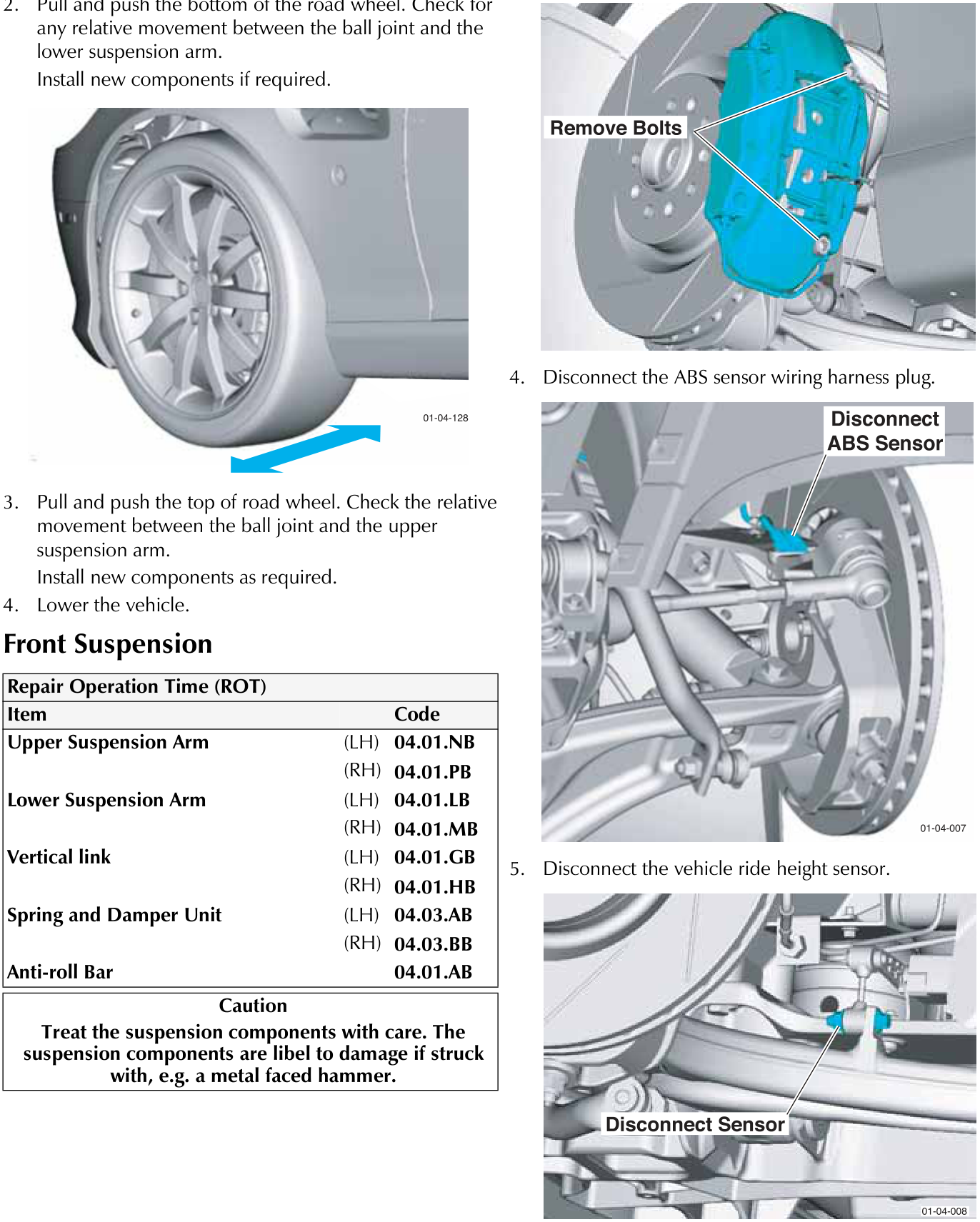

2. Pull and push the bottom of the road wheel. Check for any relative movement between the ball joint and the lower suspension arm.
   Install new components if required.

3. Pull and push the top of road wheel. Check the relative movement between the ball joint and the upper suspension arm.
   Install new components as required.
4. Lower the vehicle.

Front Suspension

Caution
Treat the suspension components with care. The suspension components are libel to damage if struck with, e.g. a metal faced hammer.

Removal

1. Raise the vehicle and make safe.
2. For each affected wheel station remove the road wheel(s).
3. Remove the brake caliper (bolts x2). Move the brake caliper to one side and secure.

4. Disconnect the ABS sensor wiring harness plug.

5. Disconnect the vehicle ride height sensor.
