Torque Figures (page 2 of 2)

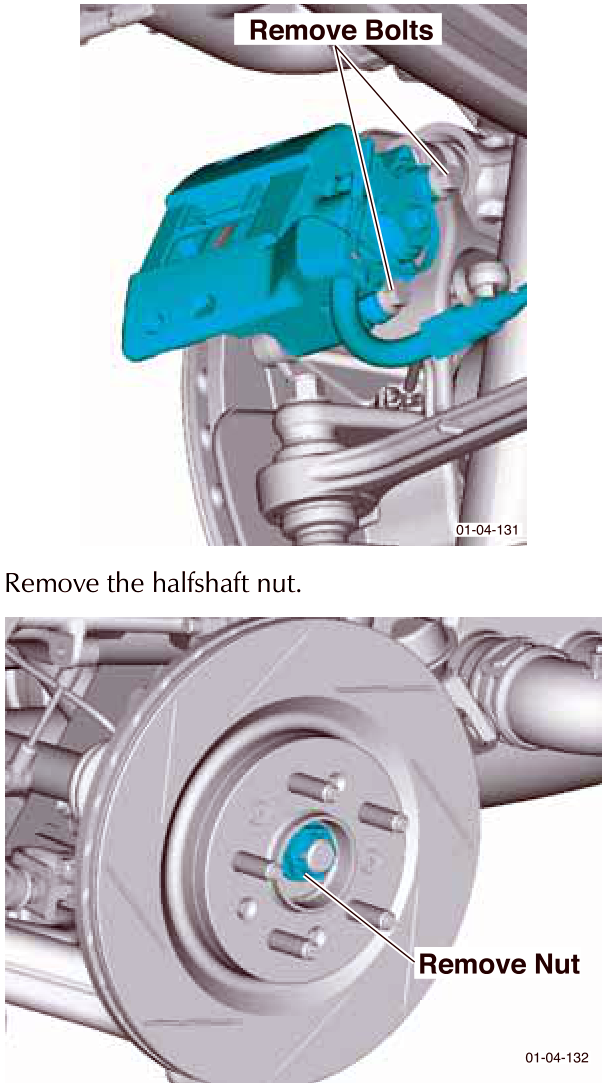

4. Remove the halfshaft nut.

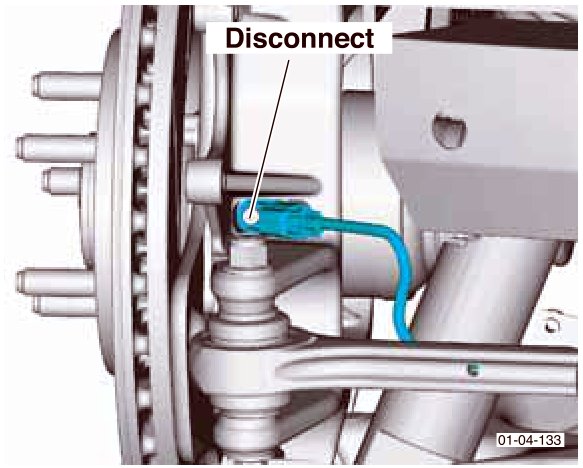

5. Disconnect the ABS sensor wiring harness plug.

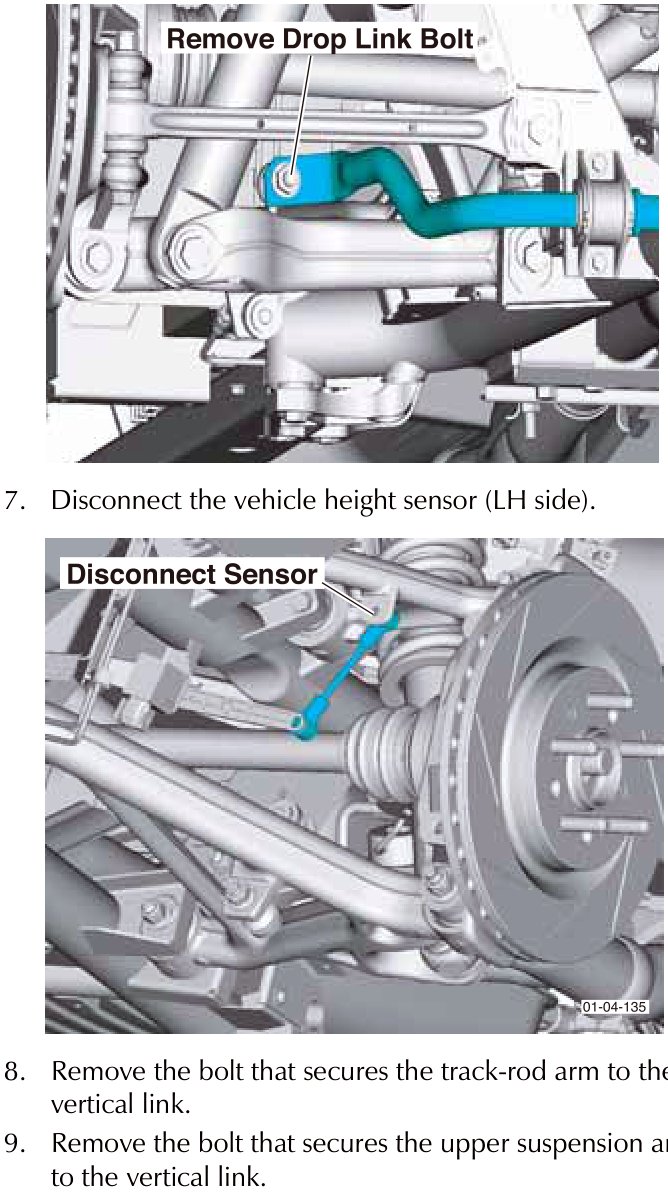

6. Remove the anti-roll bar drop links. 7. Disconnect the vehicle height sensor (LH side). 8. Remove the bolt that secures the track-rod arm to the vertical link. 9. Remove the bolt that secures the upper suspension arm to the vertical link. 10. Press the halfshaft from the vertical link. 11. Remove the bolt that secures the vertical link to the lower suspension arm.
