05 DrivelineDriveline (05.00) · page 2 of 2

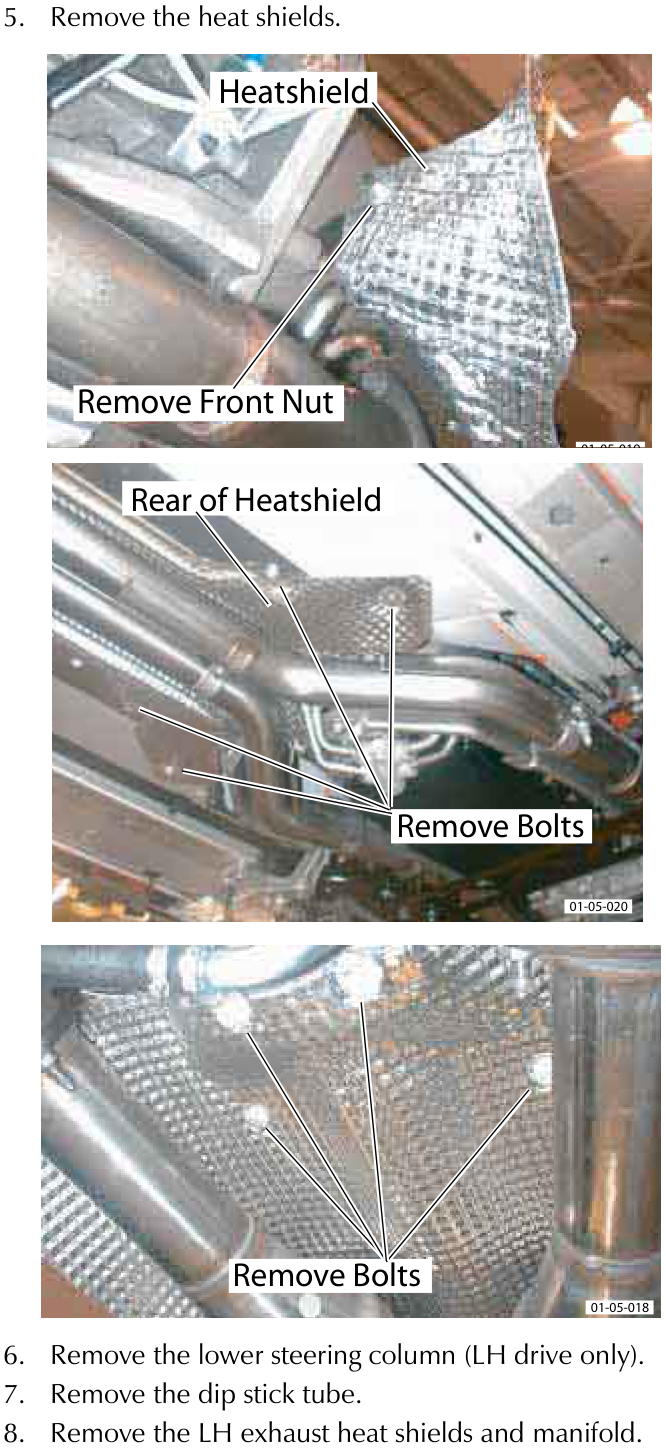

  1. Remove the heat shields.
Three photographs showing the removal of exhaust heat shields and bolts on the LH side. Labels indicate 'Heatshield', 'Remove Front Nut', 'Rear of Heatshield', and 'Remove Bolts' with part numbers 01-05-019, 01-05-020, and 01-05-018.
  1. Remove the lower steering column (LH drive only).
  2. Remove the dip stick tube.
  3. Remove the LH exhaust heat shields and manifold.

Remove the manifold and lay to one side.

  1. Automatic Gearbox Only.
    Remove the rear subframe complete with the transaxle (Refer to ‘Rear Subframe’, page 2-1-4).
  2. Manual Gearbox Only.
    Remove the transaxle (Refer to ‘Manual Transmission (07.03)’, page 7-3-1).
  3. Allow the torque tube to lower until the engine is resting on the front subframe rear crossmember.

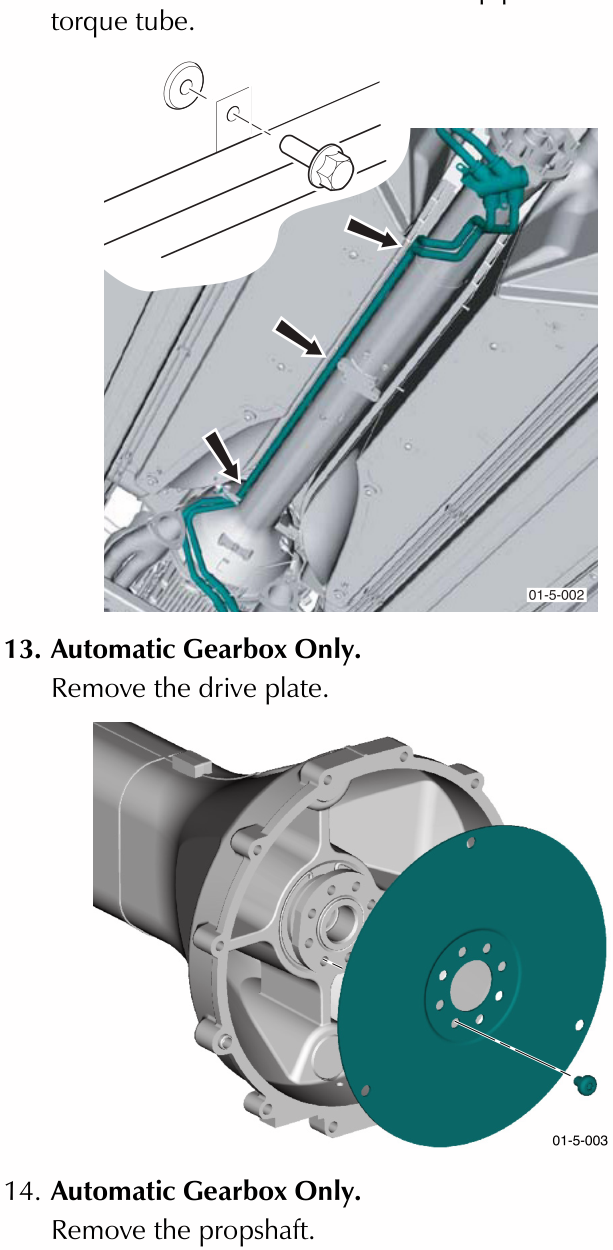

Diagram showing transmission oil coolant pipes being removed from the torque tube, indicated by arrows. Part number 01-5-002.
  1. Automatic Gearbox Only.
    Remove the transmission oil coolant pipes from the torque tube.
3D rendering of a drive plate attached to the transaxle output flange. Part number 01-5-003.
  1. Automatic Gearbox Only.
    Remove the drive plate.

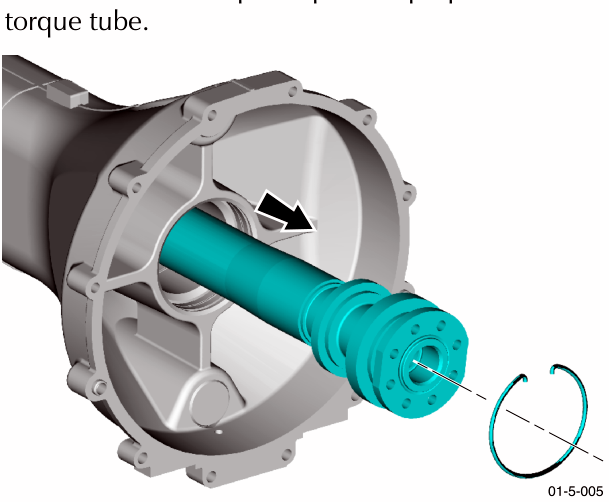

  1. Automatic Gearbox Only.
    Remove the propshaft.
    Remove the wire clip and pull the propshaft from the torque tube.
