Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005)08 · 07 Transmission
08 · Transmission

Installation

Make
Aston Martin
Model
DB9 Factory Workshop Manual
Year
Issue 2, 2005
Section
Transmission Cooling › Installation
07 TransmissionInstallation

Installation

  1. Install the thermostat and thermostat bracket assembly to the gearbox.
  2. Connect the cooling pipes. Ensure that the ‘O’ ring is correctly located in each pipe union.

Torque each union to 20 Nm.

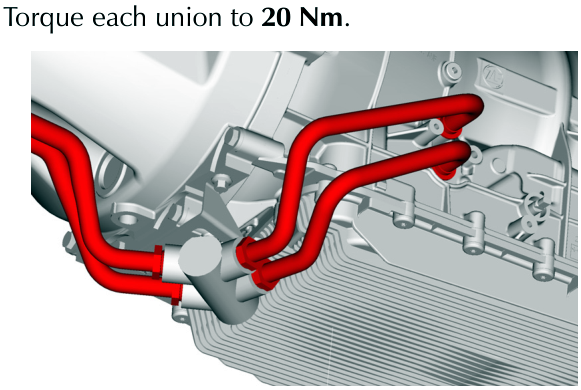

View of red coolant pipes connected to the gearbox with union joints highlighted in red
  1. Install the pipe clamp. Torque bolt to 20-25 Nm.

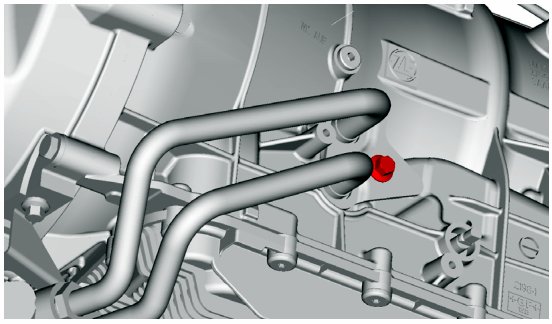

View of a metal pipe clamp securing two grey coolant pipes to the gearbox casing
  1. Run the engine to prime the cooling circuit.
  2. Check / Top up the transmission oil with the specified transmission oil (Refer to ‘Transmission Oil Check / Top Up’, page 7-1-4).

Oil Cooler (Automatic Transaxle Differential)

Repair Operation Time (ROT)
ItemCode
Oil Cooler (Automatic Transaxle Differential) RenewTBA

Removal

  1. Disconnect (quick release) the coolant pipes.

Some transmission oil will start to drip.

Cap the open ends.

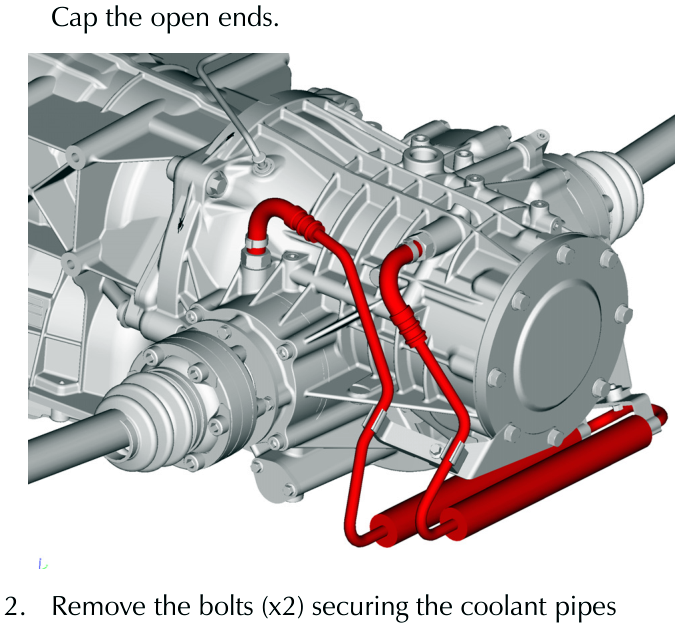

View of the automatic transaxle differential showing red coolant pipes and the oil cooler at the bottom right
  1. Remove the bolts (x2) securing the coolant pipes brackets. Withdraw the oil cooler.

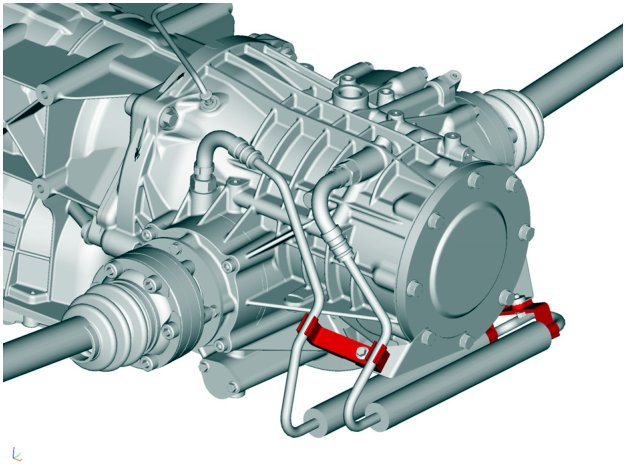

View of the automatic transaxle differential showing the empty space where the oil cooler was removed, with brackets visible

Installation

  1. With the coolant pipes clipped into their brackets, secure the coolant pipe brackets.
  2. Connect the coolant pipes.
  3. Run the engine to prime the cooling circuit.
  4. Check / Top up the differential with the specified differential oil (Refer to ‘Specifications’, page 7-1-3).
