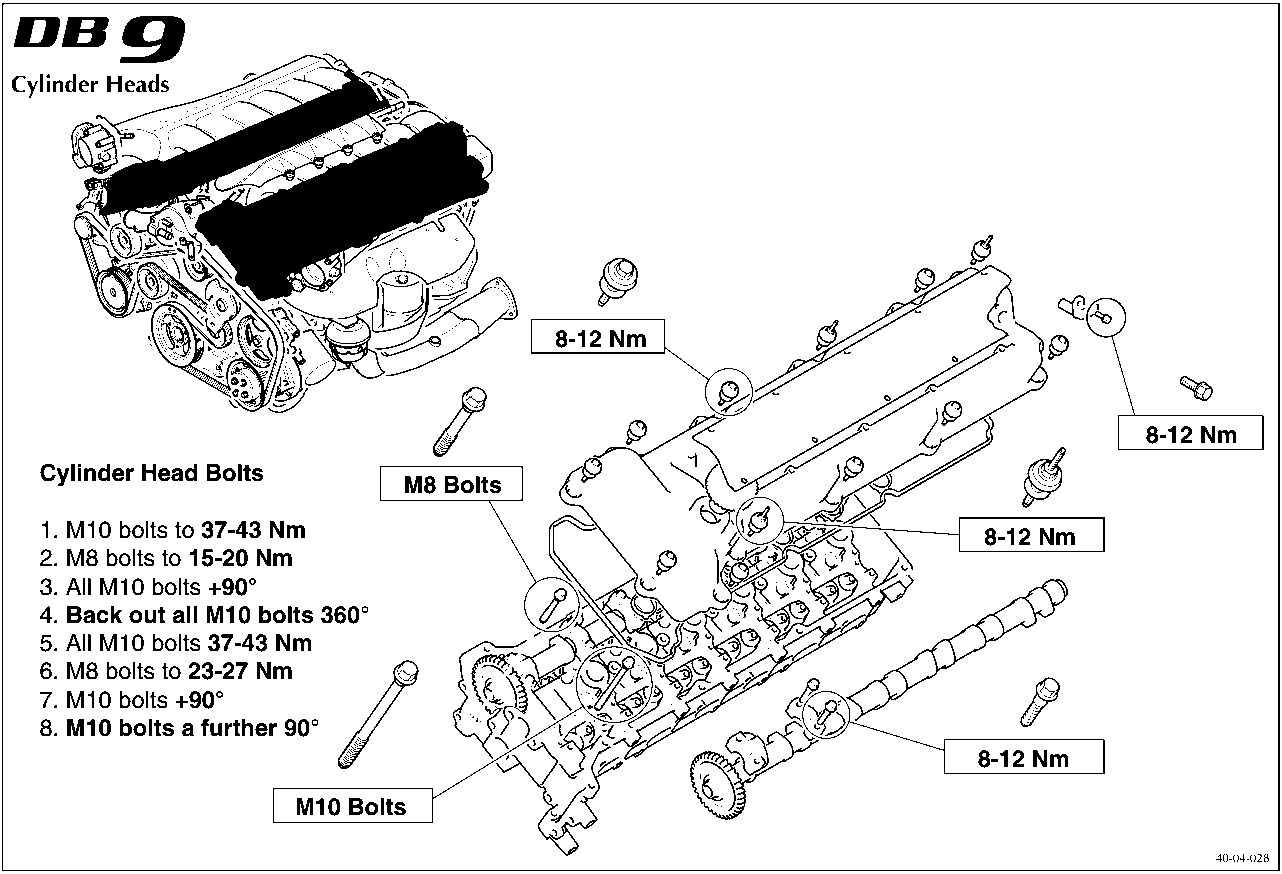

Cylinder Heads

Cylinder Head Bolts

1. M10 bolts to 37-43 Nm
2. M8 bolts to 15-20 Nm
3. All M10 bolts +90°
4. Back out all M10 bolts 360°
5. All M10 bolts 37-43 Nm
6. M8 bolts to 23-27 Nm
7. M10 bolts +90°
8. M10 bolts a further 90°

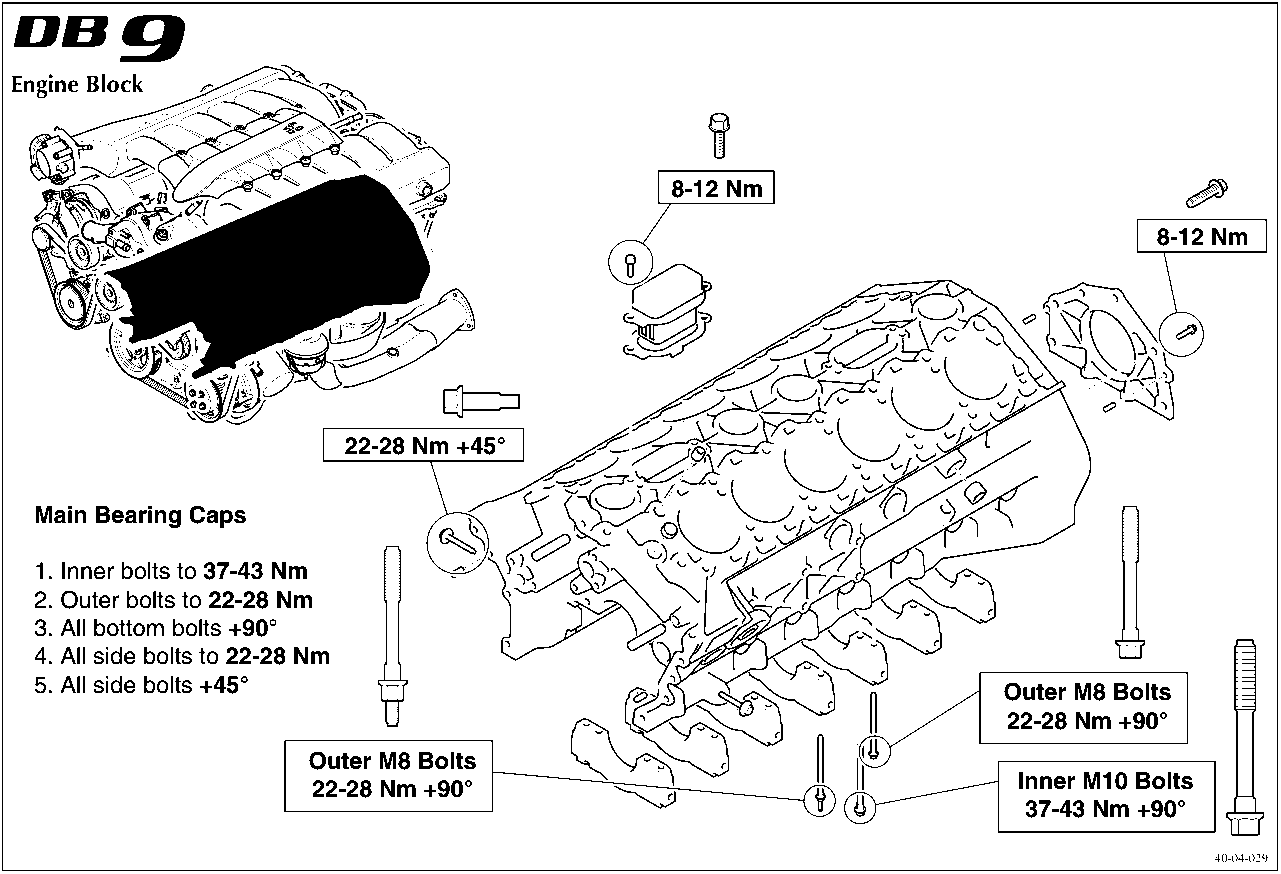

Engine Block

Main Bearing Caps

1. Inner bolts to 37-43 Nm
2. Outer bolts to 22-28 Nm
3. All bottom bolts +90°
4. All side bolts to 22-28 Nm
5. All side bolts +45°
