Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005)21 · 20 Appendix and glossary
21 · General

Engine Pulleys

Make
Aston Martin
Model
DB9 Factory Workshop Manual
Year
Issue 2, 2005
Section
Torque Figures › Engine Pulleys
20 Appendix and glossaryEngine Pulleys

Appendix & Glossary

Issue 2 November 2004

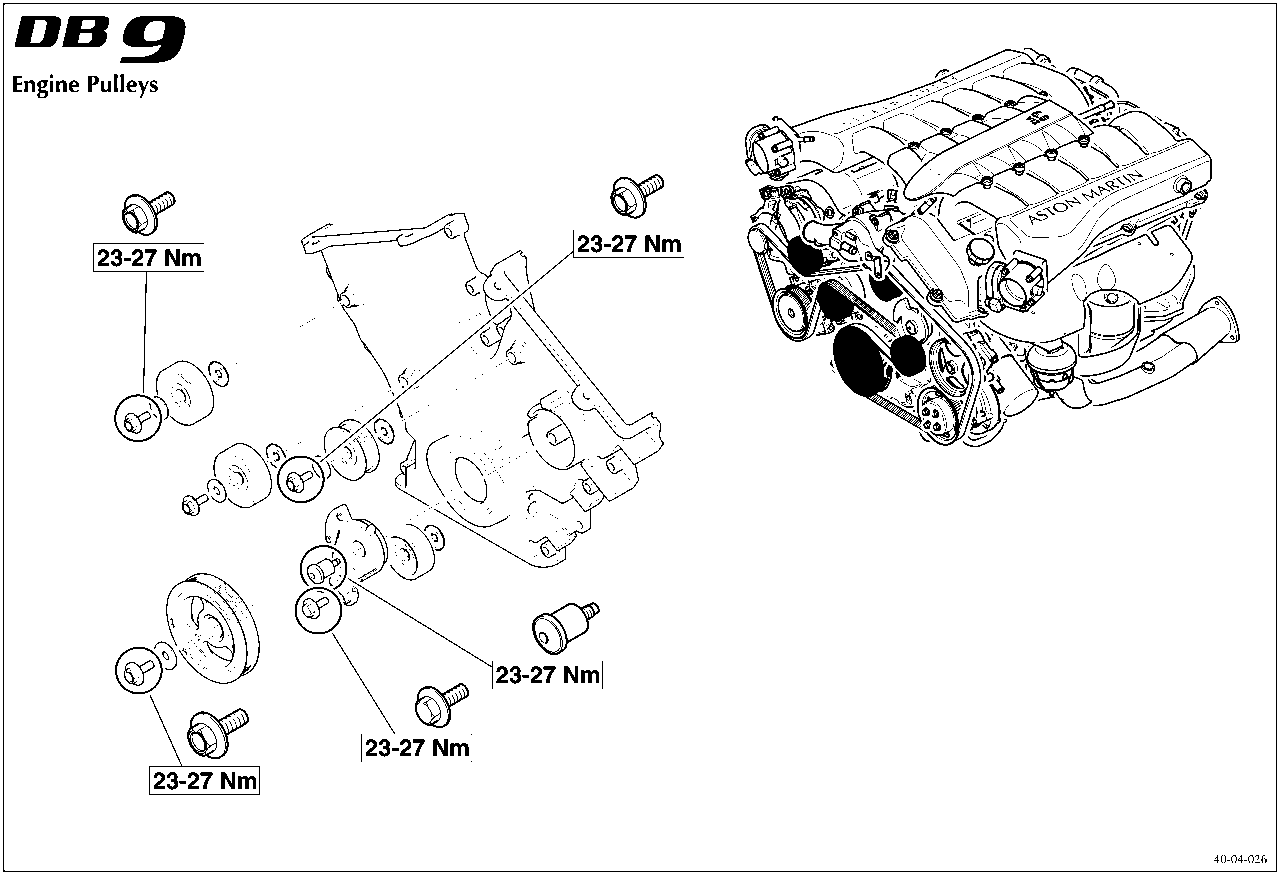

Diagram of engine pulleys showing five bolt locations with torque specification 23-27 Nm. Document code 40-04-026.

Engine Pulleys

23-27 Nm
23-27 Nm
23-27 Nm
23-27 Nm
23-27 Nm

40-04-026

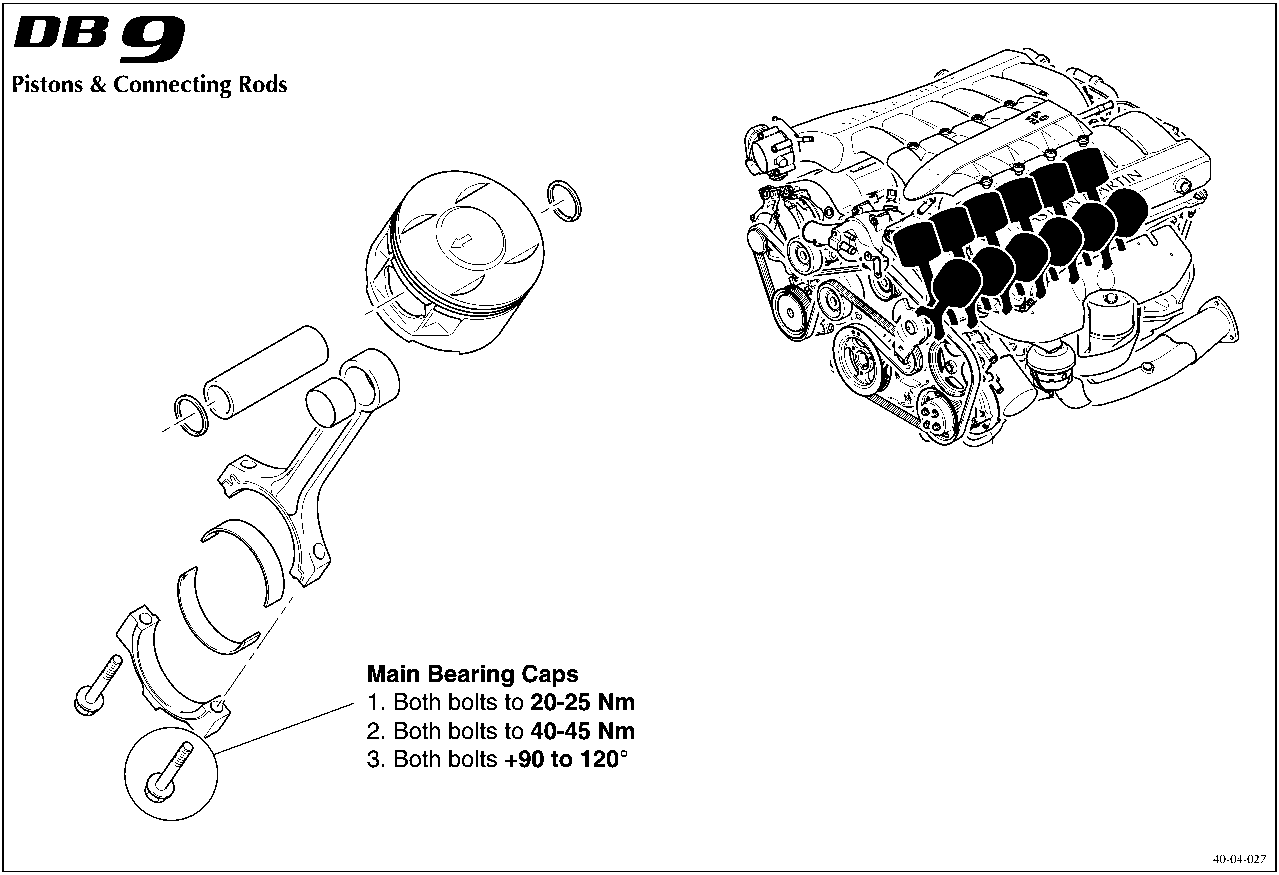

Diagram of pistons and connecting rods with main bearing caps. Text lists tightening steps: 1. Both bolts to 20-25 Nm, 2. Both bolts to 40-45 Nm, 3. Both bolts +90 to 120°. Document code 40-04-027.

Pistons & Connecting Rods

Main Bearing Caps

  1. Both bolts to 20-25 Nm
  2. Both bolts to 40-45 Nm
  3. Both bolts +90 to 120°

40-04-027
