Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005)21 · 20 Appendix and glossary
21 · General

Front Brakes

Make
Aston Martin
Model
DB9 Factory Workshop Manual
Year
Issue 2, 2005
Section
Torque Figures › Front Brakes
20 Appendix and glossaryFront Brakes · page 1 of 3

Appendix & Glossary
Issue 2 November 2004

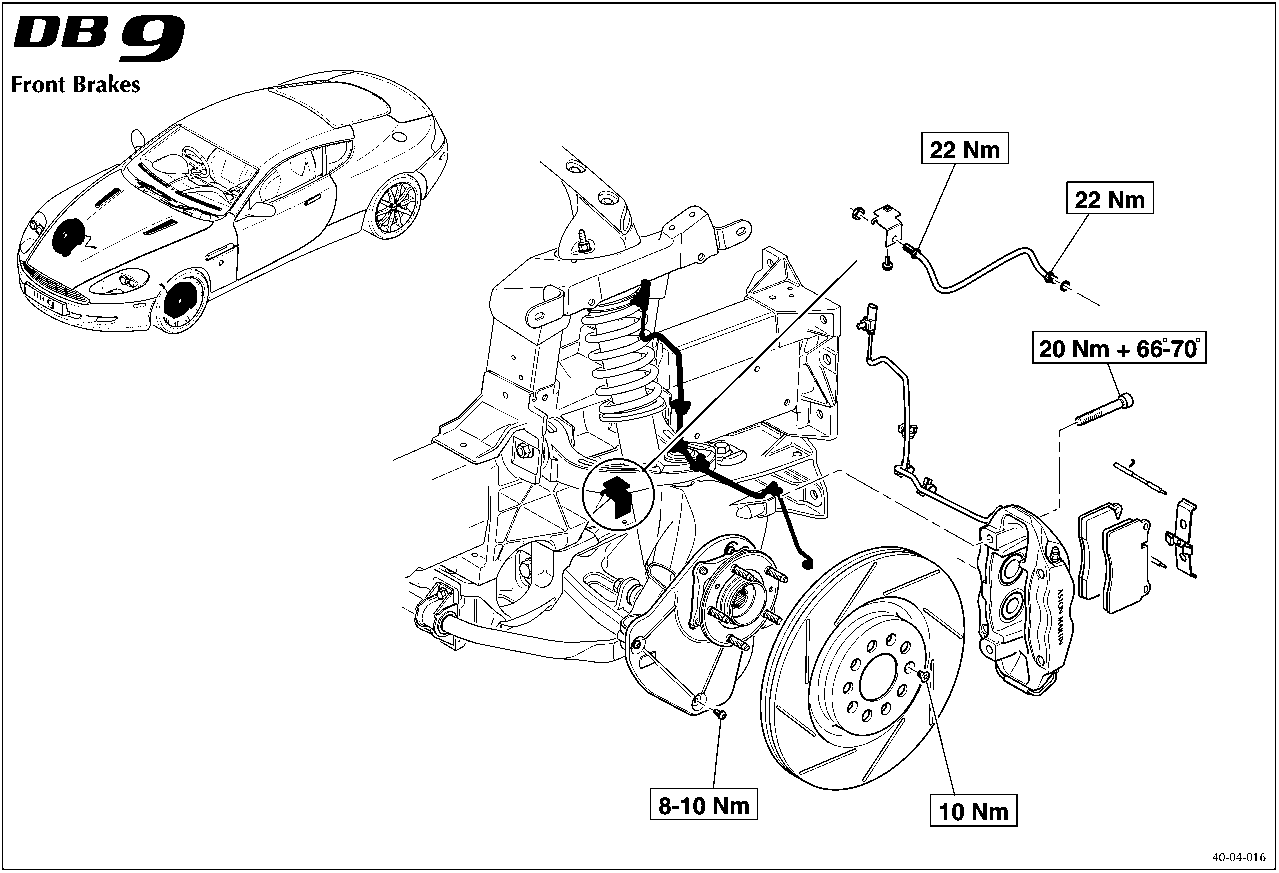

Diagram of front brake assembly with torque values: 22 Nm, 22 Nm, 20 Nm + 66-70°, 8-10 Nm, and 10 Nm indicated on various components.

Front Brakes

  1. 22 Nm
  2. 22 Nm
  3. 8-10 Nm
  4. 10 Nm
  5. 20 Nm + 66-70°

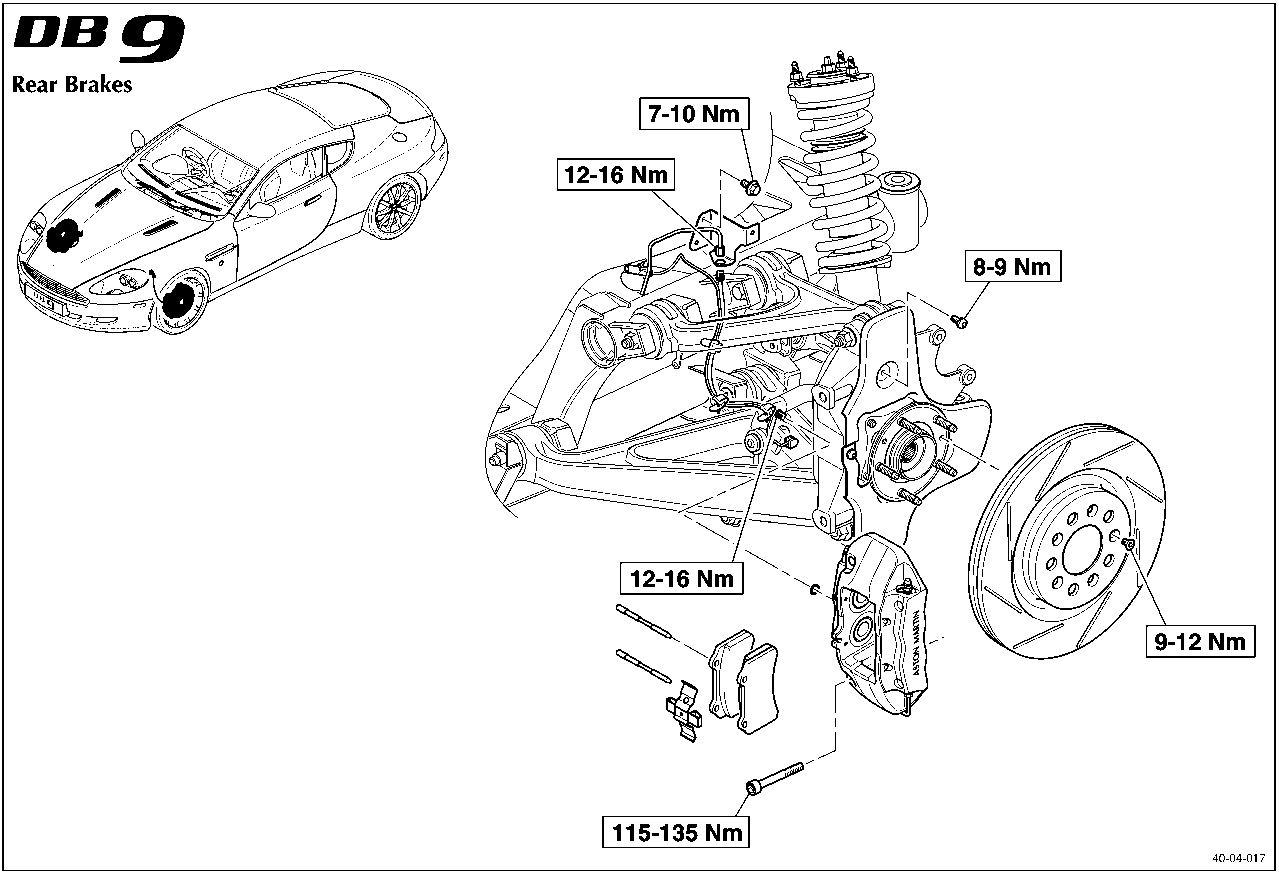

Diagram of rear brake assembly with torque values: 7-10 Nm, 12-16 Nm, 8-9 Nm, 12-16 Nm, 9-12 Nm, and 115-135 Nm indicated on various components.

Rear Brakes

  1. 7-10 Nm
  2. 12-16 Nm
  3. 115-135 Nm
  4. 9-12 Nm
  5. 8-9 Nm
  6. 12-16 Nm
