Purge Install

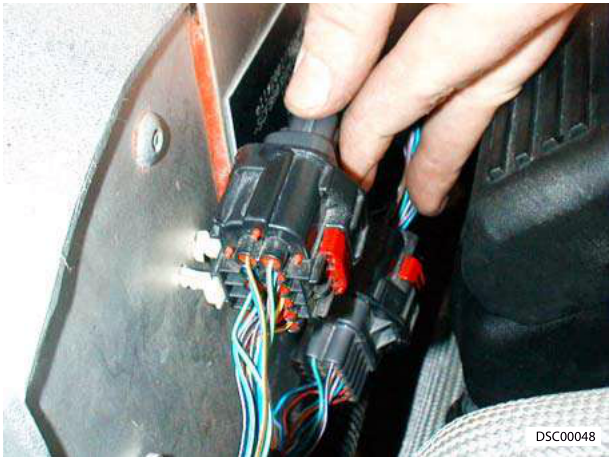

49. Connect multiplugs (x3) RH side of engine bay (refer to Figure 40).

Purge Install

50. Connect purge pipe to purge valve.
51. Install bottom screws (x2) and tighten top screw of washer bottle.
52. Move pipe into position and install pipe to support clips (x2).

Fuel Install

53. Install fuel hose to rail (clip x1).

Clutch Pipe Install

54. Install clutch metal pipe from flexible.
55. Install flexible hose grommet to support bracket.
56. Bleed clutch.

Suspension Install

57. Install front springs and dampers. (refer to Workshop Manual procedure 04.03.AA Spring and Damper Assembly - Front Pair - Renew).
58. Install RH wheel arch liner (refer to Workshop Manual procedure 01.02.GB Wheel Arch Liner - Front - RH - Renew).
59. Install LH wheel arch liner (refer to Workshop Manual procedure 01.02.FB Wheel Arch Liner - Front - LH - Renew).
60. Install bottom arms (nut and bolt x4) with uprights and top arm.
61. Install level sensor link to bottom arm (nut x1).
62. Connect level sensor multiplex.
63. Connect track rod ends (nut x2).
64. Install anti-roll bar to links (nuts x2).
65. Install brake discs.
66. Install brake callipers.
67. Install road wheel/s

Throttle Duct Install

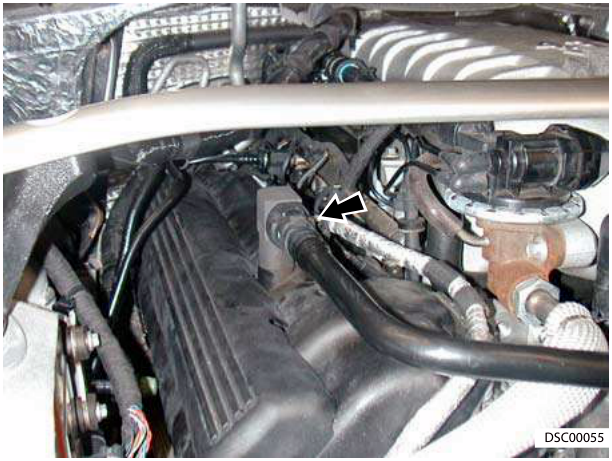

68. Connect breather pipe quickfits (x2) from air cleaner duct (refer to Figure 41).

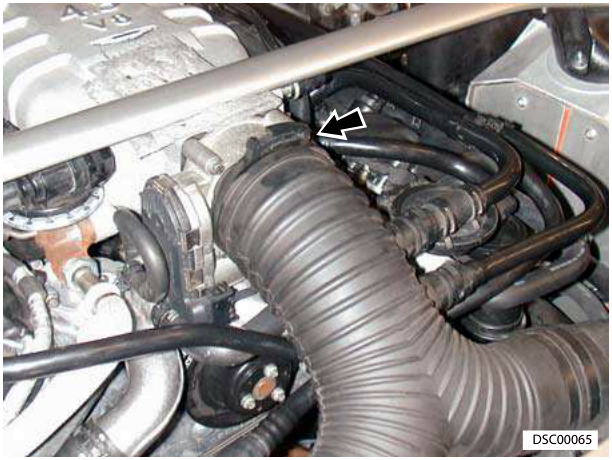

69. Install throttle body duct (refer to Figure 42).

General Install

70. Remove strap - vehicle to ramp (front).
71. Lower vehicle on ramp.
72. Connect vehicle battery.
73. Top-up PAS fluid.
74. 4 wheel alignment check/adjust (refer to Workshop Manual procedure 04.00.AD 4 Wheel Alignment - Check and Adjust).
75. Install transmission (refer to Workshop Manual procedure 07.03.AA Transaxle Assembly - Manual - Remove for Access and Refit).
76. Use handbook procedure to check oil level.
