Purge Removal

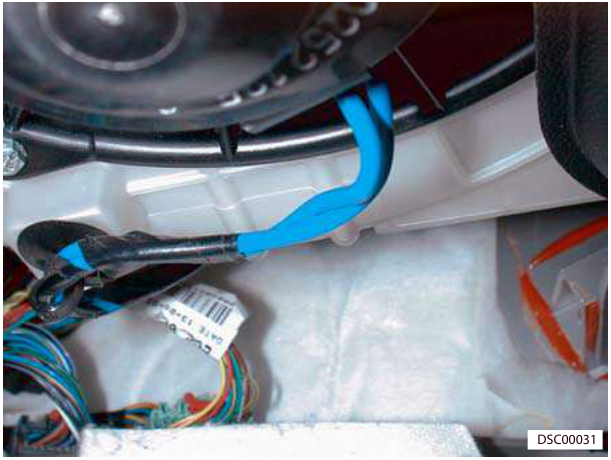

60. Disconnect multiplugs (x4) from inside of vehicle RH side of I.P. (refer to Figure 19).

Figure 19

61. Release grommet from body, feed harness from inside of vehicle.
62. Release harness from clips (x11) and position over engine.

Purge Removal

63. Remove bottom screws (x2) and loosen top screw of washer bottle.
64. Disconnect purge pipe from purge valve (move washer bottle aside).
65. Release pipe from support clips (x2) and move pipe over engine.

Fuel Pipe Removal

66. Remove fuel hose from rail (clip x1).

Clutch Pipe Removal

67. Remove clutch metal pipe from flexible.
68. Remove flexible hose grommet from support bracket.

Subframe/Engine Removal

69. Remove undertray.
70. Mark subframe position.
71. Remove harness clips (x2).
72. Remove load level sensor from subframe (nut and bolt).
73. Support torque tube with transmission jack.
74. Position trolley, support subframe, remove bolts (x12) raise vehicle.
75. Ensure A/C HP pipe is clear of engine as body is raised.

Installation

Install Subframe/Engine

1. Ensure A/C HP pipe is correct position as body is lowered.

Figure 20

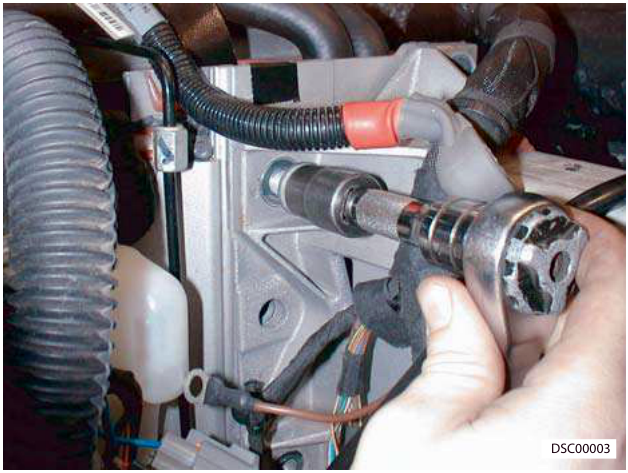

2. Install subframe to body (refer to Figure 20).
3. Remove transmission jack.
4. Install harness clips (x2).
5. Install load level sensor.
6. Install undertray.
7. Lower ramp.

Cooling Install

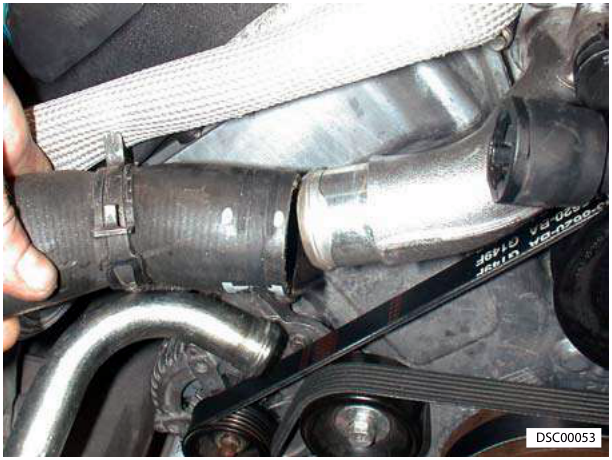

8. Connect top hose and clip to body (refer to Figure 21).

Figure 21
