03 EngineSteering Install · page 1 of 2
  1. Recharge refrigerant (refer to Workshop Manual procedure 12.03.FA Refrigerant Gas - Recover/Recharge - Renew).

    2. Steering Install

  2. Connect steering column link to steering rack (bolt x1) (refer to Figure 31).

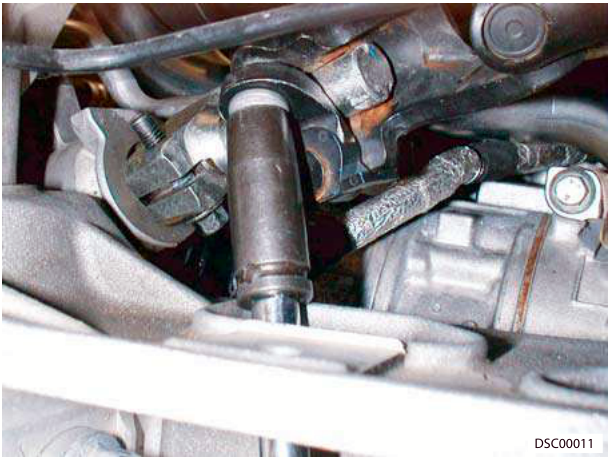

    3. Steering column link connected to steering rack

    Electrical Install

  3. Feed harness into inner wing area (refer to Figure 32).

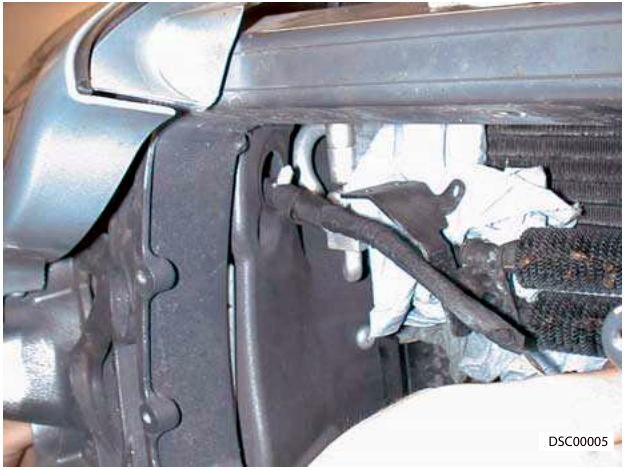

    4. Harness fed into inner wing area
  4. Install fusebox to bracket.
  5. Install earth lead to fusebox.
  6. Install battery lead to fusebox (1x nut and rubber cover).
  7. Install multiplugs to fuse box (refer to Figure 33).

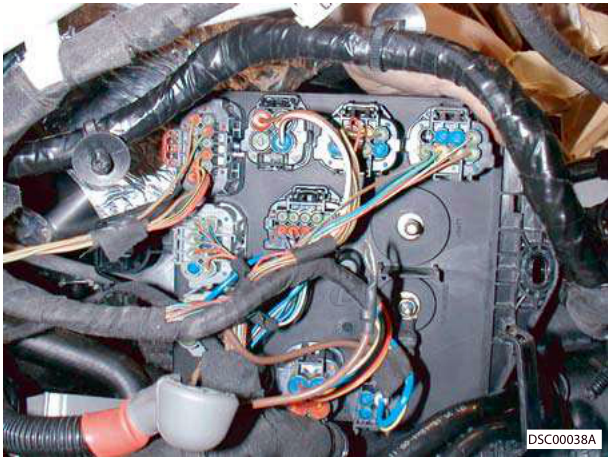

    8. Multiplugs installed in fuse box
  8. Install fusebox bracket fixings (refer to Figure 34).

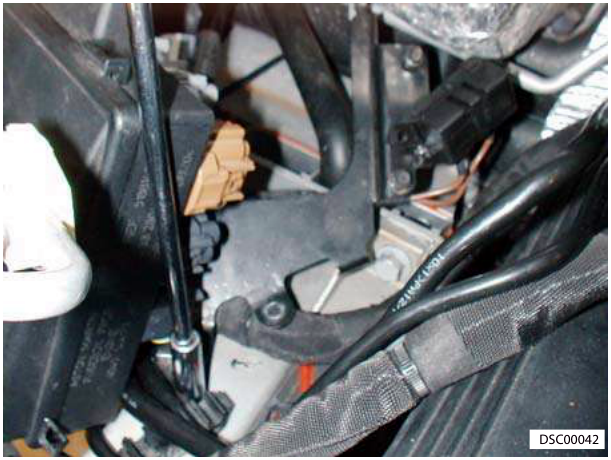

    9. Fusebox bracket fixings installed
  9. Install ECM and connect multiplugs to ECM (through cover plate) (refer to Figure 35).

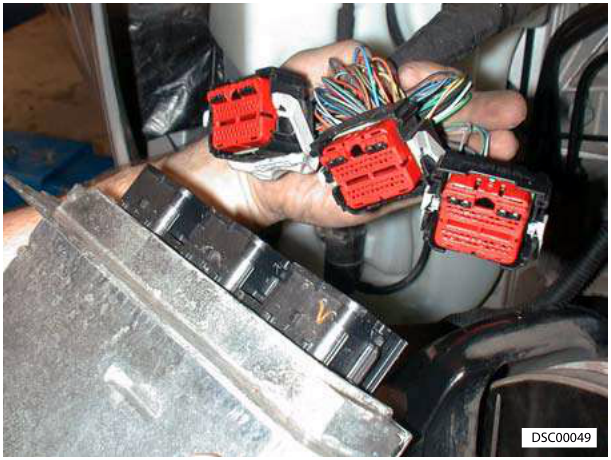

    10. ECM with multiplugs connected
