11 SteeringInstall · page 4 of 4
  1. Put the anti-roll bar into position.

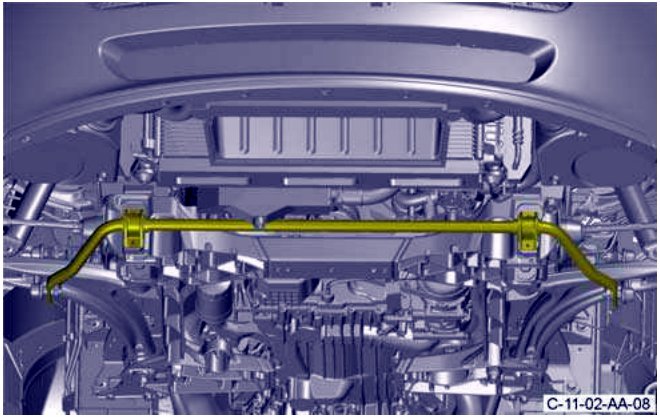

    2. Anti-roll bar installed in position

    Figure 43

  2. Install and torque the four screws that attach the anti-roll bar to the front subframe.
  3. Lower the vehicle.
  4. Tighten the two top screws that attach the oil tank to the body.

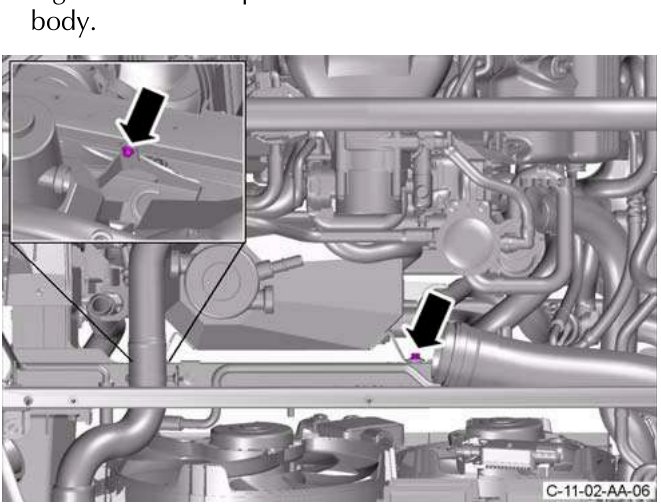

    5. Screws attaching oil tank to body

    Figure 44

  5. Remove and discard the sealing plugs from the upper oil pipe and the oil tank.
  6. Install the top oil pipe onto the oil tank and tighten the union that attaches it to the oil tank.

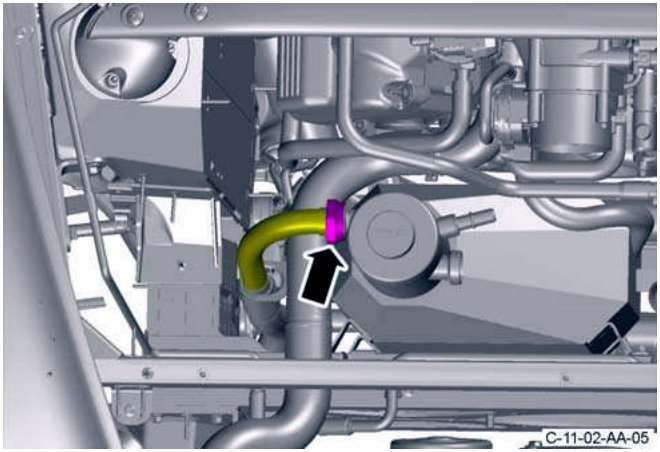

    7. Top oil pipe installed on oil tank

    Figure 45

  7. Remove and discard the caps from the oil breather pipes and the oil tank.
  8. Connect the two oil breather pipes to the oil tank.

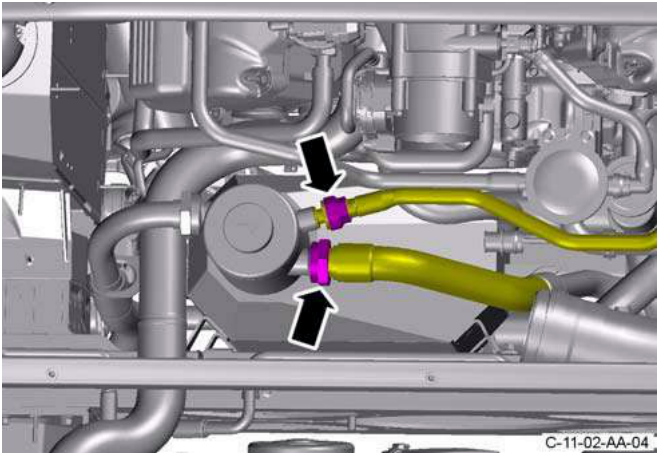

    9. Oil breather pipes connected to oil tank

    Figure 46

  9. Connect the air intake pipe to the throttle body and the outlet pipe for the right side air cleaner.

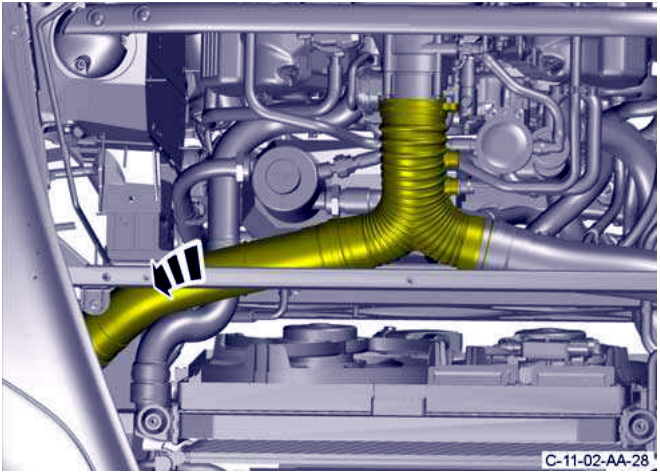

    10. Air intake pipe connected to throttle body and outlet pipe

    Figure 47

  10. Install the clip that attaches the air intake pipe to the outlet pipe for the right side air cleaner.

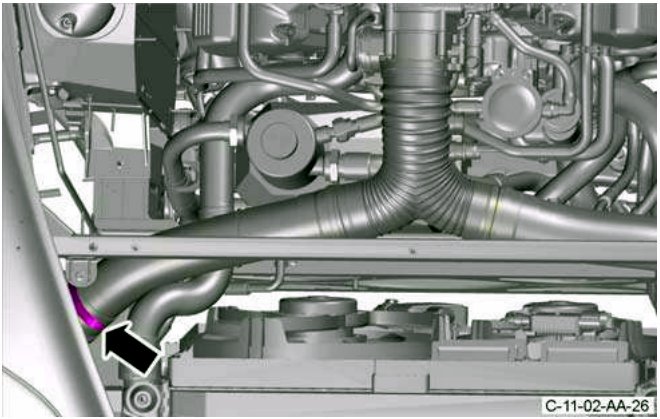

    11. Clip attaching air intake pipe to outlet pipe

    Figure 48
