Vehicle Electrics: Infotainment Aerial System Overview

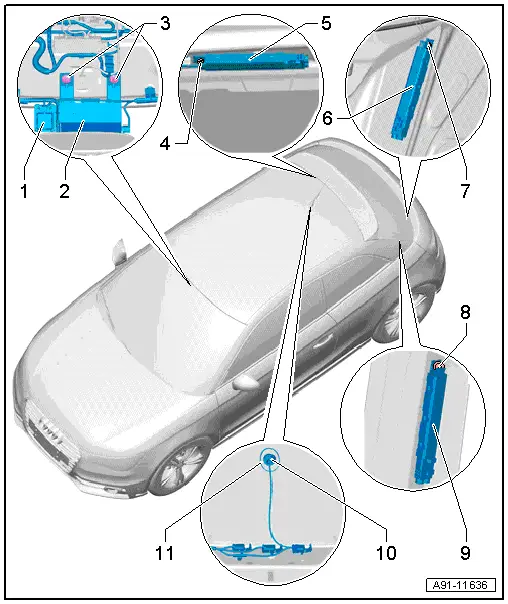

| Overview |
| 1 - | GPS aerial -R50- |
| q | Removing and installing → Chapter |
| 2 - | Telephone aerial -R65- |
| q | Removing and installing → Chapter |
| 3 - | Bolt |
| q | 2 Nm |
| 4 - | Bolt |
| q | 2 Nm |
| 5 - | Aerial amplifier 2 -R111- |
| q | Only with roof spoiler |
| q | Pin assignment → Anchor |
| q | Pin assignment (Japan) → Anchor |
| q | Removing and installing → Chapter |
| - Right aerial module -R109- |
| q | Japan only |
| q | Normal roof only |
| q | Pin assignment → Anchor |
| q | Removing and installing → Chapter |
| 6 - | Aerial amplifier -R24- |
| q | Pin assignment → Anchor |
| q | Removing and installing → Chapter |
| 7 - | Bolt |
| q | 2 Nm |
| 8 - | Bolt |
| q | 2 Nm |
| 9 - | Aerial amplifier 3 -R112- |
| q | Pin assignment → Anchor |
| q | Removing and installing → Chapter |
| - Left aerial module -R108- |
| q | Japan only |
| q | Pin assignment → Anchor |
| q | Removing and installing → Chapter |
| 10 - | Nut |
| q | 6 Nm |
| 11 - | Roof aerial -R216- |
| q | Removing and installing → Chapter |
