Removing and installing GPS aerial
Removing and installing GPS aerial
Removing and installing GPS aerial

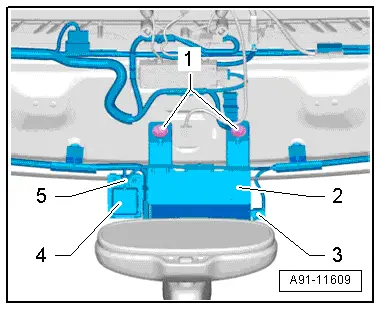

The GPS aerial -R50- is located on the windscreen (top centre) behind the front interior light -W1-.
Telephone aerial -R65- and GPS aerial -R50- are located on one carrier.
–
Switch off ignition and all electrical equipment and remove ignition key.
Removing
–
Remove front interior light -W1-
→ Electrical system; Rep. gr.96
.
–
Release and unplug connector
-3-
at telephone aerial -R65-
-2-
and connector
-5-
at GPS aerial -R50-
-4-
.
–
Unscrew bolts
-1-
and remove carrier together with telephone aerial -R65- and GPS aerial -R50-.
Installing
–
Install in reverse sequence of removal.
