Removing and installing telephone aerial

Make

Audi

Model

A1

Section

Infotainment › Aerial system › Removing and installing telephone aerial

Vehicle electricsRemoving and installing telephone aerial

Removing and installing telephone aerial The telephone aerial -R65- is located on the windscreen (top centre) behind the front interior light -W1-. Telephone aerial -R65- and GPS aerial -R50- are located on one carrier. –  Switch off ignition and all electrical equipment and remove ignition key. Removing –  Remove front interior light -W1- → Electrical system; Rep. gr.96.

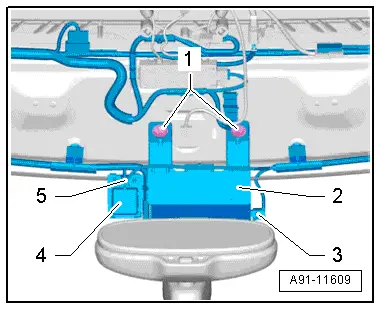

–  Release and unplug connector -3- at telephone aerial -R65--2- and connector -5- at GPS aerial -R50--4-. –  Unscrew bolts -1- and remove carrier together with telephone aerial -R65- and GPS aerial -R50-. Installing –  Install in reverse sequence of removal. Tightening torques → Chapter
