Removing and installing front mid-range loudspeakers
Removing and installing front mid-range loudspeakers
Front left mid-range loudspeaker -R103- and front right mid-range loudspeaker -R104- are located in front door trim panels (top).
The removal and installation procedure is similar for all components.
–  Switch off ignition and all electrical equipment and remove ignition key.
Removing
–  Remove door trim (front) → General body repairs, interior; Rep. gr.70.

First remove reinforcement -4- and then front left mid-range loudspeaker -R103--3-.
–  Release and unplug electrical connector -2- at front left mid-range loudspeaker -R103--3-.
–  Remove bolts -1- at reinforcement -4- and pivot reinforcement -4- to one side.

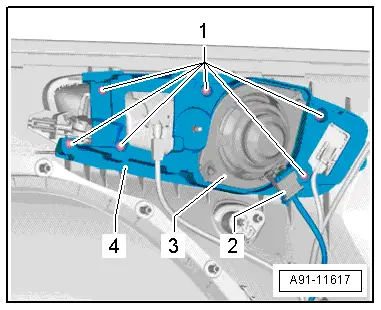

Removing front left mid-range loudspeaker -R103-
  A91-11617
–  Remove bolts -3- at reinforcement -1- and detach front left mid-range loudspeaker -R103--2- from reinforcement -1-.
Installing
–  Install in reverse sequence of removal.
Tightening torques → Chapter
