A1

Removing and installing subwoofer
Removing and installing subwoofer

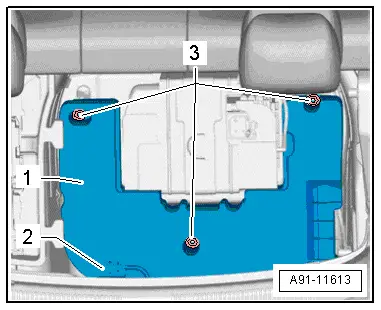

The subwoofer -R211- is located in the spare wheel well.
–  Switch off ignition and all electrical equipment and remove ignition key.
Removing
–  Take out luggage compartment floor.

–  Release and unplug connector -2- at subwoofer -R211--1-.
–  Remove nuts -3- from subwoofer -R211--1-.
–  Lift subwoofer -R211--1- out of spare wheel well.
Installing
–  Install in reverse sequence of removal.
Tightening torques → Chapter
  A91-11613
