Removing and installing rear effect loudspeakers
Removing and installing rear effect loudspeakers
The left effect loudspeaker -R209- and right effect loudspeaker -R210- are located behind the C-pillar trim panels/D-pillar trim panels.
The removal and installation procedure is similar for all components.
–  Switch off ignition and all electrical equipment and remove ignition key.
Removing
Saloon only
–  Remove C-pillar trim → General body repairs, interior; Rep. gr.70.
Sportback only
–  Remove D-pillar trim → General body repairs, interior; Rep. gr.70.
All
–  Release and unplug connector at left effect loudspeaker -R209-.

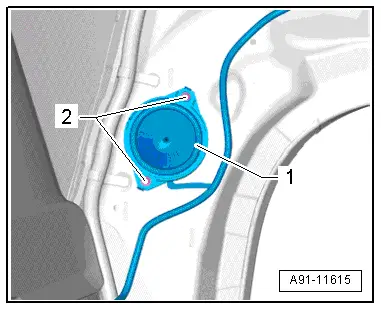

–  Unscrew bolts -2- at left effect loudspeaker -R209--1-.
–  Detach left effect loudspeaker -R209--1- from pillar.
Installing
–  Install in reverse sequence of removal.
Tightening torques → Chapter
