Disconnecting and connecting battery
Disconnecting and connecting battery
Procedure
  Caution
On vehicles fitted with telematics system, activate service mode of telematics control unit before disconnecting battery → Communication; Rep. Gr.01 or → Rep. Gr.91.

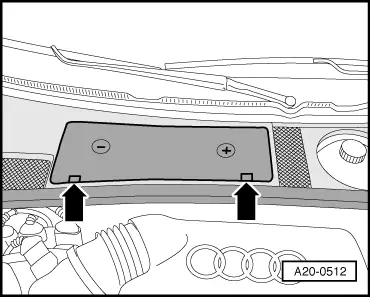

–  If fitted, remove cover above battery -arrows-.
  A20-0512

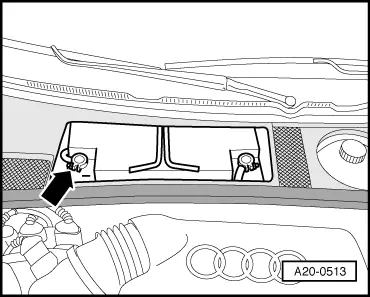

–  With ignition switched off, disconnect earth cable -arrow- at battery.
–  When connecting battery, attach battery clamp of earth cable to negative battery terminal “–” by hand and tighten nut.
The following measures must be carried out after re-connecting battery:
  Note
t  Make sure to activate vehicle equipment (radio, radio navigation system, clock, electric windows) according to operating instructions.
t  Deactivate service mode of telematics control unit → Communication; Rep. Gr.01 or → Rep. Gr.91.
t  For further operations after reconnecting power supply, refer to → Rep. Gr.24.
t  Check proper function of remote control keys; synchronise keys if necessary. Inform customer that all additional keys must also be synchronised to ensure that the remote control works properly → Owner's Manual.
t  After reconnecting the voltage supply, it is possible that the ABS/ESP warning lamp will not go out until the vehicle has been driven several metres.
Tightening torque
  A20-0513
ComponentNm
Battery cable clamp to battery terminal8
