Vanity Lamp: Locations

Passenger Compartment/Roof Component Views

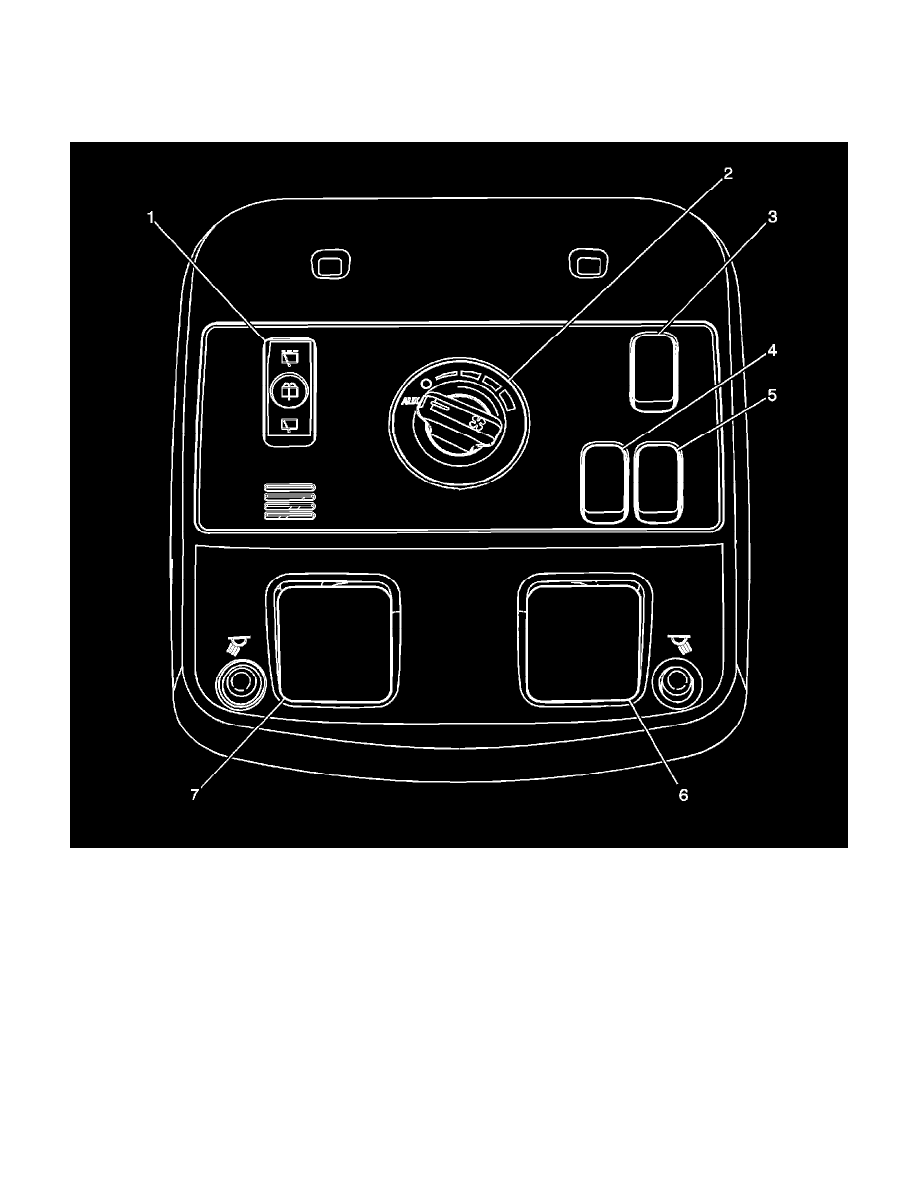

Overhead Console Components

1 - Wiper/Washer Switch - Rear
2 - Blower Motor Switch - Auxiliary (C57)
3 - Rear Sunshade Switch (C3B)
4 - Sunroof Switch (CF5/C3B)
5 - Front Sunshade Switch (CF5/C3B)
6 - Courtesy/Reading Lamp - Front
7 - Courtesy/Reading Lamp - Front

Headliner and Overhead Console Components
