SRX AWD V6-3.6L (2008)
Ignition Coil: Locations
Powertrain Component Views

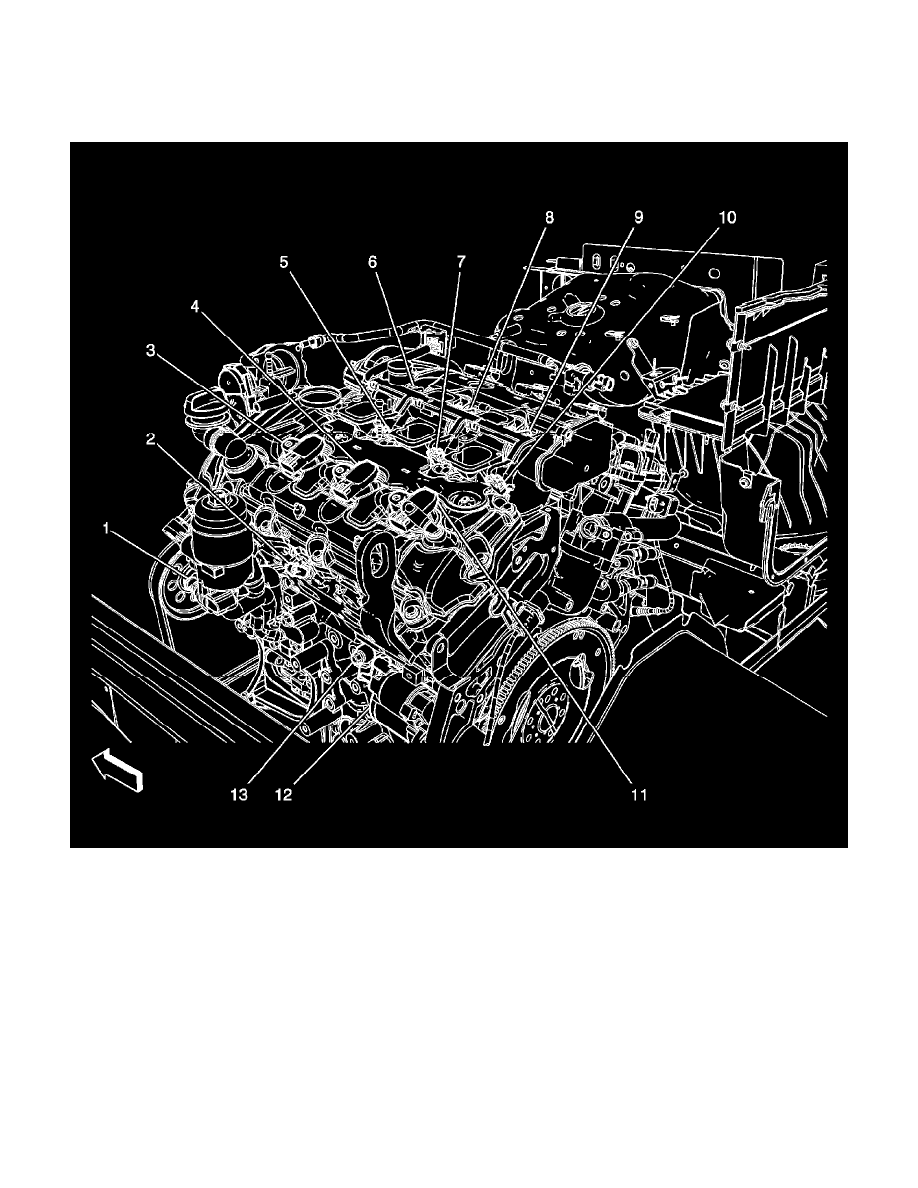

Engine Components 1 of 2 (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)
1 - Engine Oil Pressure (EOP) Sensor (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)
2 - Engine Coolant Temperature (ECT) Sensor (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)
3 - Ignition Coil 2
4 - Ignition Coil 4
5 - Fuel Injector 2
6 - Fuel Injector 1
7 - Fuel Injector 4
8 - Fuel Injector 3
9 - Fuel Injector 5
10 - Fuel Injector 6
11 - Ignition Coil 6
12 - Starter
13 - Knock Sensor (KN) - Bank 2
Engine Components 2 of 2 (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)
