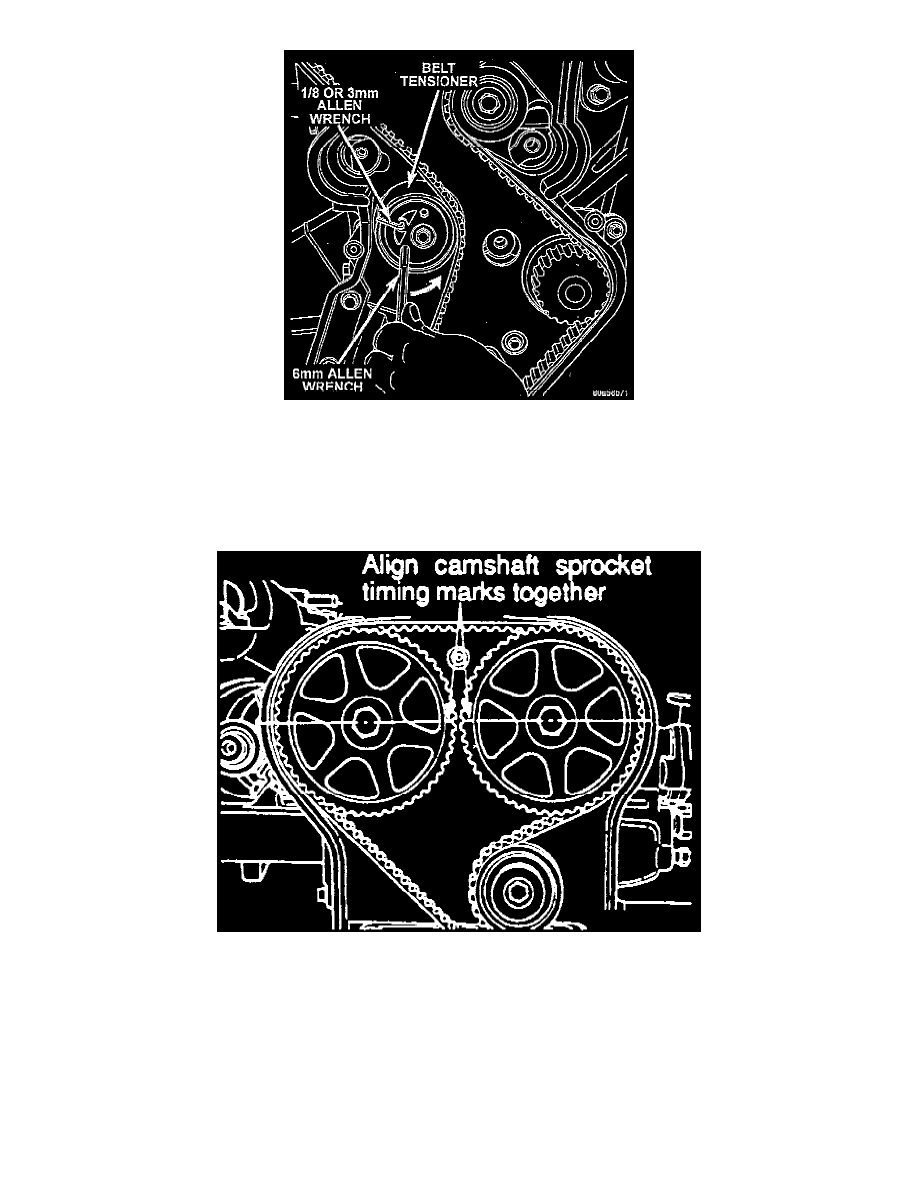

9. Install 6 mm Allen wrench into belt tensioner. Before rotating the tensioner insert the long end of a 1/8" or 3 mm Allen wrench into the pin hole on
the front of the tensioner. While rotating the tensioner counterclockwise push in lightly on the 1/8" or 3 mm Allen wrench, until it slides into the
locking hole.
10. Remove timing belt.
INSTALLATION
1. Set crankshaft sprocket to Top Dead Center (TDC) by aligning the sprocket with the arrow on the oil pump housing.
2. Set camshafts timing marks together by aligning notches on sprockets.
CAUTION: Ensure that the arrows on both camshaft sprockets are facing up.
