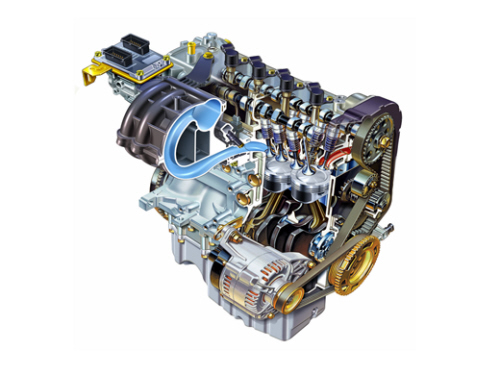

INTRODUCTION - ENGINE

1.4 16v TJet

4 cylinder in line 1368 cc FIRE TURBO engine, with TOHC, 16 valve timing system and engine management with Bosch ME 7.9.10 integrated electronic injection/ignition system.

1.9 JTD 8v, 1.9 JTD 16v

This engine is equipped with a high pressure electronic injection system for Bosch Common Rail EDC 16 C39 fast diesel engines, fully managed by an electronic control unit.

To reduce polluting emission levels, this engine is equipped with:

- exhaust system with oxidizing catalytic converter and DPF system (particulate filter)

- exhaust gas recirculation system E.G.R.

- crankcase blow-by gas recirculation system.

1.4 16v

4 cylinder in line 1368 cc engine, with TOHC, 16 valve timing system and engine management with Bosch ME 7.3H4 integrated electronic injection/ignition system.

Toothed timing drive belt and hydraulic tappets with cups.

The systems involved in the operation of the engine are:

- fuel supply system

- air supply system

- exhaust system with catalytic converter

- fuel vapour recirculation system

- engine cooling system.
