Vehicle dimensions
- Make
- Fiat
- Model
- Bravo Factory Service Manual
- Year
- 2007–2014
- Section
- Project specifications and descriptions › Vehicle dimensions
SpecificationsVehicle dimensions

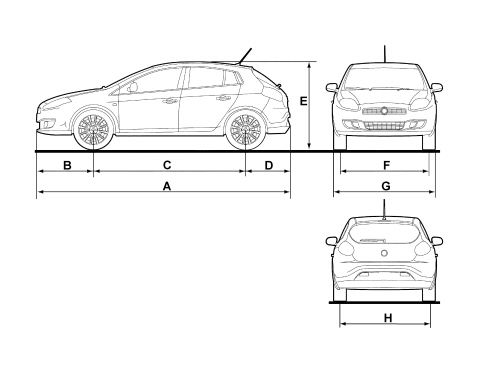

VEHICLE DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its original tyres.
Height is measured with vehicle unladen.
| 1.4 16v | 1.4 16v T-Jet | 1.9 Multijet 8v | 1.9 Multijet 16v | |
|---|---|---|---|---|
| A (mm) | 4336 | 4336 | 4336 | 4336 |
| B (mm) | 974 | 974 | 974 | 974 |
| C (mm) | 2600 | 2600 | 2600 | 2600 |
| D (mm) | 762 | 762 | 762 | 762 |
| E (mm) | 1498 | 1498 | 1498 | 1498 |
| F (mm) | 1538 1530 (*) | 1538 1530 (*) | 1538 1530 (*) | 1538 1530 (*) |
| G (mm) | 1792 | 1792 | 1792 | 1792 |
| H (mm) | 1532 1524 (*) | 1532 1524 (*) | 1532 1524 (*) | 1532 1524 (*) |
(*) With optional 18" alloy wheels
Small variations in size are possible, depending on the dimensions of the rims/tyres.
Luggage compartment capacity (V.D.A. standards): 400 dm3 with cargo box
Luggage compartment volume (VDA standard) with back seat folded down: 1175 dm3 with cargo box
