Radiator cooling fan - r r with air conditioner

Operation 1088E09 · COOLANT TEMPERATURE CONTROL DEVICES

1.2 8v, 1.4 8v

Removing

Place the car on a ramp.

Disconnect the battery negative terminal.

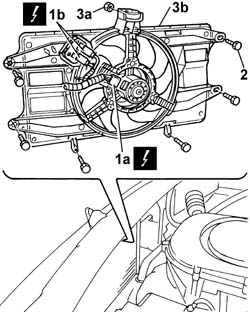

1. Disconnect the electrical supply connector (1a) for the fan and the electrical connections (1b) for the fan resistor

Release the electrical wiring from the retaining bands.

Open the band and release the lower engine coolant pipe.

2. Undo the bolts fixing the fan to the radiator.

3. Undo the nut (3a) fixing the fan to the upper crossmember and remove the engine fan (3b).

Refitting

Position the fan and secure it using the fixing nut and bolts.

Connect the electrical connection.

Secure the fan wiring to the bands.

Position the engine coolant pipe and tighten the securing band.

Connect the battery negative terminal.

Remove the vehicle from the ramp.
