Introduction - POWER ASSISTED STEERING

INTRODUCTION

The hydraulic type power assisted steering system adopted on the vehicle is fitted as standard on the 1910 D version and is available as an option on the 1242 8v version.

The improvement of the rack and pinion coupling has made it possible to achieve a transmission ratio of 60 mm/rev; a figure which corresponds to excellent manoeuvrability for vehicles in this category.

STEERING CONTROL AND LINKAGE

The power assisted steering system consists of:

• the fluid reservoir in the engine compartment
• the vane pump, driven by the engine, including the maximum pressure and flow rate valve
• a series of pump-distributor valve-operating cylinder-reservoir connecting pipes
• a rack and pinion steering box with hydraulic power assistance.

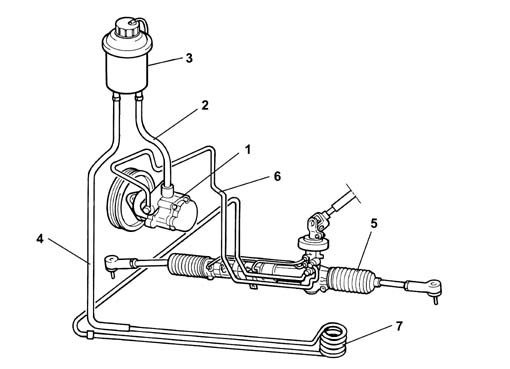

1, Power assisted steering pump

2, Oil supply pipe to the pump

3, Fluid reservoir

4, Oil return pipe to the reservoir

5, Power assisted steering box

6, Oil supply pipe under pressure

7, Heat exchanger

VANE PUMP

The vane pump is driven directly by the engine through a belt and is capable of providing the system with a supply pressure which varies from 3.5 bar to 85 bar.

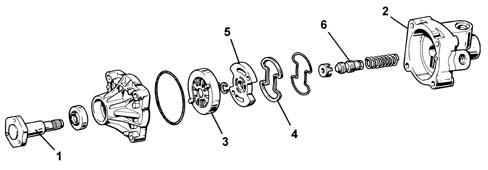

1, Control shaft

2, Pump casing

3, Impeller with vanes

4, Gasket

5, Impeller side plate

6, Regulating valve

Power assisted steering box

The power assisted steering box is the rack and pinion type; it contains an operating cylinder (2) in which a dual acting piston (1), fixed to the rack rod, slides.

The worm screw housing contains a distributor valve (3). The latter is controlled according to the effort detected by a torsion device (4) located at the end of the worm screw, steering column side.

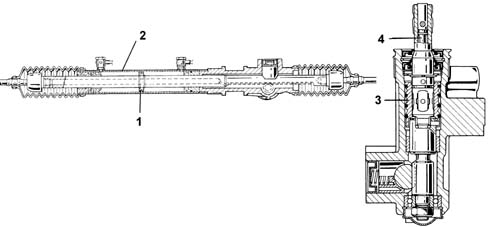

1, Dual action piston

2, Operating cylinder

3, Distributor valve

4, Torsion device

Power assisted steering box

According to the torsion force transmitted by the steering wheel to the torsion device, the oil under pressure is sent to the reservoir (recirculated), or to one of the two chambers in the operating cylinder.

The force produced by the pressure of the oil on the surface of the piston determines the power assisted effect provided by the device, in particular for the vehicle in question.
