Vehicle dimensions

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Design specifications and description › Vehicle dimensions

SpecificationsVehicle dimensions

VEHICLE DIMENSIONS

Height is measured with vehicle unladen

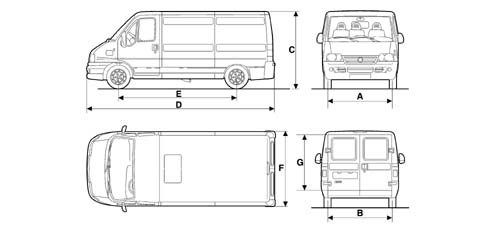

Van version

VERSIONS	MAXI
	SHORT WHEELBASE	MEDIUM WHEELBASE	LONG WHEELBASE
A (mm)	1720	1720	1720
B (mm)	1720	1720	1720
C (mm)	2160-2480	2160-2735	2480-2860
D (mm)	4749	5099	5599
E (mm)	3200	3200	3700
F (mm)	2024	2024	2024
G (mm)	1441-1760	1441-2060	1441-1760

Dimensions change depending on the version within the above limits

VERSIONS	11		15
	SHORT WHEELBASE	MEDIUM WHEELBASE	SHORT WHEELBASE	MEDIUM WHEELBASE	LONG WHEELBASE
A (mm)	1720		1720		1720		1720		1720
B (mm)	1720		1720		1720		1720		1720
C (mm)	2154-2470	2150-2725	2150-2470	2150-2725	2470-2850
D (mm)	4749	5099	4749	5099	5599
E (mm)	2850	3200	2850	3200	3700
F (mm)	2024		2024		2024		2024		2024
G (mm)	1441-1760	1441-1760	1441-1760	1441-2016	1441-1760

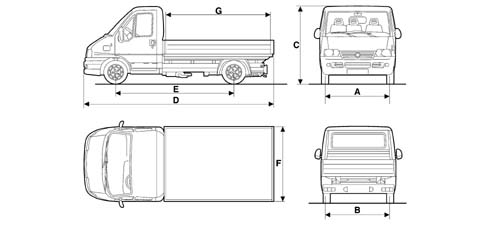

Truck version

Dimensions change depending on the version within the above limits

(*) A 2180 mm wide box may be supplied as an option

VERSIONS	11	15			MAXI
	SHORT WHEELBASE	SHORT WHEELBASE	MEDIUM WHEELBASE	LONG WHEELBASE	MEDIUM WHEELBASE	LONG WHEELBASE
A (mm)	1720	1720	1720	1720	1720	1720
B (mm)	1720	1720	1720	1720	1720	1720
C (mm)	2100	2100	2100	2100	2125	2125
D (mm)	4831	4831	5181	5861	5181	5861
E (mm)	2850	2850	3200	3700	3200	3700
F(*)(mm)	2024	2024	2024	2024	2024	2024
G (mm)	2585	2585	2080-2935	2585-3435	2080-2935	2585-3435
