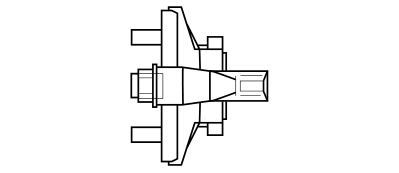

A001 BATTERY

A001A – Battery positive

Wiring	Colour
See 41 BATTERY POSITIVE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
				See B099I MAXI FUSE BOX ON BATTERY (BATTERY POSITIVE)

A001B – Battery negative

2.3 JTD 16V, 2.8 JTD 8V

Wiring	Colour
See 40 BATTERY NEGATIVE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	50	R	X	See C003 BATTERY EARTH ON BODYSHELL
				See C002 BATTERY EARTH ON ENGINE

2.0 16V, 2.0 JTD 8V

Wiring	Colour
See 40 BATTERY NEGATIVE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	50	R		See C003 BATTERY EARTH ON BODYSHELL

A001C – Front

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	S		See D018A ADDITIONAL FRONT/DASHBOARD COUPLING (FRONT)	A10

A001D – Optional junction unit under dashboard bridge

Wiring	Colour
See 110 OPTIONAL JUNCTION UNIT UNDER DASHBOARD BRIDGE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	10	N		See P125 TRANSFORMER SOCKET	C
