A020 starter motor

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Starting - recharging › A020 starter motor

Connectors and pin-outsA020 starter motor

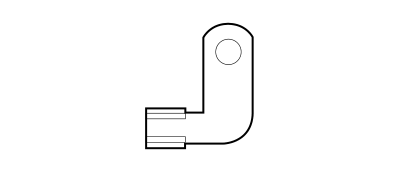

A020 STARTER MOTOR

A020A – Recharging

2.0 16V, 2.0 JTD 8V, 2.8 JTD 8V

Wiring	Colour
See 45 RECHARGING

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	35	R		See B099H MAXI FUSE BOX ON BATTERY (RECHARGING)	1

A020B – Engine

2.0 16V · Methane

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	2,5	CN		See B001A JUNCTION UNIT (ENGINE)	19

2.0 JTD 8V

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	2,5	RN		See B001A JUNCTION UNIT (ENGINE)	19

2.3 JTD 16V, 2.8 JTD 8V

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	2,5	RN		See B001A JUNCTION UNIT (ENGINE)	19

A020B – Recharging

2.0 16V

Wiring	Colour
See 45 RECHARGING

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	RN		See D007B ALTERNATOR COUPLING (FRONT)	2
