D007 ALTERNATOR COUPLING

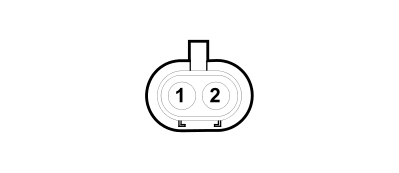

D007A – Front

2.0 JTD 8V, 2.3 JTD 16V, 2.8 JTD 8V

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	HM		See D001A FRONT/DASHBOARD COUPLING (FRONT)	A01
2	0,5	HG	X	See D001A FRONT/DASHBOARD COUPLING (FRONT)	B08
				See D004A FRONT/ENGINE COUPLING (FRONT)	D06

2.0 16V

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	HM		See D001A FRONT/DASHBOARD COUPLING (FRONT)	A01
2	0,5	HG		See D001A FRONT/DASHBOARD COUPLING (FRONT)	B08

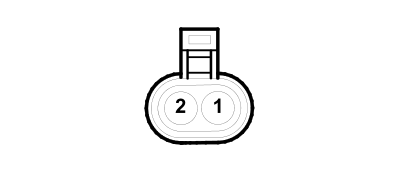

D007A – Recharging

2.3 JTD 16V

Wiring	Colour
See 45 RECHARGING	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	HN		See A010B ALTERNATOR (ENGINE)	D+

2.0 16V, 2.8 JTD 8V

Wiring	Colour
See 45 RECHARGING	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	HM		See A010B ALTERNATOR (ENGINE)	D+
2	0,5	HG		See K028 ENGINE OIL PRESSURE SENSOR	1

D007B – Front

2.0 16V

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
B	2,5	RN		See H001A IGNITION SWITCH (FRONT)	3

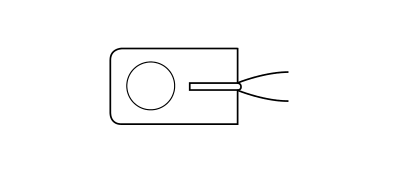

D007B – Recharging

2.0 16V

Wiring	Colour
See 45 RECHARGING	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
B	2,5	RN		See A020B STARTER MOTOR (ENGINE)	1
