Ducato Factory Service Manual (2002-2006)
Connectors and pin-outs
Intermediate couplings
D193 methane / injection coupling
22 · General
D193 methane / injection coupling
Make
Fiat
Model
Ducato Factory Service Manual
Year
2002–2006
Section
Intermediate couplings › D193 methane / injection coupling
Connectors and pin-outs D193 methane / injection coupling

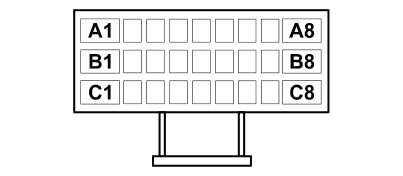

D193 METHANE / INJECTION COUPLING
2.0 16V · Methane
Pin Cable Destination Sec. Colour Node Connect. Pin A1 2,5 N See L061A METHANE REGULATION SOLENOID (FRONT) 1 A2 0,5 B See M019B METHANE INJECTION CONTROL UNIT (FRONT) 43 A3 0,5 B See M019B METHANE INJECTION CONTROL UNIT (FRONT) 52 A4 0,5 B See M019B METHANE INJECTION CONTROL UNIT (FRONT) 35 A5 0,5 B See M019B METHANE INJECTION CONTROL UNIT (FRONT) 44 A6 0,5 B See M019B METHANE INJECTION CONTROL UNIT (FRONT) 1 1 A7 0,5 B See M019B METHANE INJECTION CONTROL UNIT (FRONT) 23 A8 1 G X See J025 METHANE SOLENOID RELAY 87 See L061B METHANE REGULATION SOLENOID (FRONT) 1 B1 1,5 AN X See M019B METHANE INJECTION CONTROL UNIT (FRONT) 34 See J026 LPG SUPPLY REMOTE CONTROL 85 See J025 METHANE SOLENOID RELAY 85 B2 0,5 R See M019B METHANE INJECTION CONTROL UNIT (FRONT) 32 B3 0,5 R See M019B METHANE INJECTION CONTROL UNIT (FRONT) 51 B4 0,5 R See M019B METHANE INJECTION CONTROL UNIT (FRONT) 46 B5 0,5 R See M019B METHANE INJECTION CONTROL UNIT (FRONT) 33 B6 0,5 R See M019B METHANE INJECTION CONTROL UNIT (FRONT) 12 C2 0,5 BR See M019B METHANE INJECTION CONTROL UNIT (FRONT) 3 C3 0,75 HN X See M019A METHANE INJECTION CONTROL UNIT (FRONT) 80 See N072A METHANE INJECTOR (FRONT) 2 See N072B METHANE INJECTOR (FRONT) 2 See N072C METHANE INJECTOR (FRONT) 2 See M019A METHANE INJECTION CONTROL UNIT (FRONT) 66 See N072D METHANE INJECTOR (FRONT) 2 See M019A METHANE INJECTION CONTROL UNIT (FRONT) 59 See J026 LPG SUPPLY REMOTE CONTROL 87 C6 0,75 L See M019B METHANE INJECTION CONTROL UNIT (FRONT) 1 C7 0,5 R See M019B METHANE INJECTION CONTROL UNIT (FRONT) 38 C8 0,75 BZ See M019A METHANE INJECTION CONTROL UNIT (FRONT) 74
2.0 16V · Climate control, Methane
Pin Cable Destination Sec. Colour Node Connect. Pin A1 2,5 N See L061A METHANE REGULATION SOLENOID (FRONT) 1 A2 0,5 B See M019B METHANE INJECTION CONTROL UNIT (FRONT) 43 A3 0,5 B See M019B METHANE INJECTION CONTROL UNIT (FRONT) 52 A4 0,5 B See M019B METHANE INJECTION CONTROL UNIT (FRONT) 35 A5 0,5 B See M019B METHANE INJECTION CONTROL UNIT (FRONT) 44 A6 0,5 B See M019B METHANE INJECTION CONTROL UNIT (FRONT) 1 1 A7 0,5 B See M019B METHANE INJECTION CONTROL UNIT (FRONT) 23 A8 1 G X See J025 METHANE SOLENOID RELAY 87 See L061B METHANE REGULATION SOLENOID (FRONT) 1 B1 1,5 AN X See M019B METHANE INJECTION CONTROL UNIT (FRONT) 34 See J026 LPG SUPPLY REMOTE CONTROL 85 See J025 METHANE SOLENOID RELAY 85 B2 0,5 R See M019B METHANE INJECTION CONTROL UNIT (FRONT) 32 B3 0,5 R See M019B METHANE INJECTION CONTROL UNIT (FRONT) 51 B4 0,5 R See M019B METHANE INJECTION CONTROL UNIT (FRONT) 46 B5 0,5 R See M019B METHANE INJECTION CONTROL UNIT (FRONT) 33 B6 0,5 R See M019B METHANE INJECTION CONTROL UNIT (FRONT) 12 C2 0,5 BR See M019B METHANE INJECTION CONTROL UNIT (FRONT) 3 C3 0,75 HN X See M019A METHANE INJECTION CONTROL UNIT (FRONT) 80 See N072A METHANE INJECTOR (FRONT) 2 See N072B METHANE INJECTOR (FRONT) 2 See N072C METHANE INJECTOR (FRONT) 2 See M019A METHANE INJECTION CONTROL UNIT (FRONT) 66 See N072D METHANE INJECTOR (FRONT) 2 See M019A METHANE INJECTION CONTROL UNIT (FRONT) 59 See J026 LPG SUPPLY REMOTE CONTROL 87 C6 0,75 L See M019B METHANE INJECTION CONTROL UNIT (FRONT) 1 C7 0,5 R See M019B METHANE INJECTION CONTROL UNIT (FRONT) 38 C8 0,75 BZ See M019A METHANE INJECTION CONTROL UNIT (FRONT) 74
