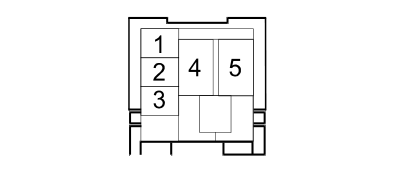

J025 METHANE SOLENOID RELAY

2.0 16V · Methane

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
85	0,75	AN	X	See M019B METHANE INJECTION CONTROL UNIT (FRONT)	34
				See D193 METHANE / INJECTION COUPLING	B1
				See J026 LPG SUPPLY REMOTE CONTROL	85
86	0,75	SN		See M019A METHANE INJECTION CONTROL UNIT (FRONT)	54
87	1,5	G	X	See D193 METHANE / INJECTION COUPLING	A8
				See L061B METHANE REGULATION SOLENOID (FRONT)	1
30	1,5	BR		See B028 GASOLINE PUMP FUSE	1
