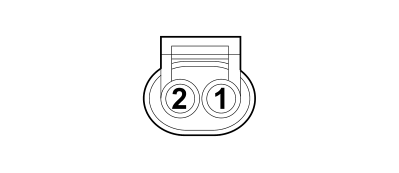

J130 HEAT - FLANGE RELAY

J130A – Front

2.3 JTD 16V, 2.8 JTD 8V

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	16	R		See B100B HEAT FLANGE FUSE (FRONT)	1

J130B – Engine

2.8 JTD 8V

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	10	R		See O003A HEAT - FLANGE (ENGINE)

J130C – Engine

2.8 JTD 8V

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	LB		See M010A ENGINE MANAGEMENT ECU (ENGINE)	15
2	0,75	AN	X	See B001A JUNCTION UNIT (ENGINE)	6
				See B001A JUNCTION UNIT (ENGINE)	7
				See K084 SPEEDOMETER SENSOR	1
				See O007A OIL VAPOUR HEATING RESISTANCE (ENGINE)	1
				See L005 INJECTION PUMP THIRD PISTON DEACTIVATION SOLENOID VALVE	1

2.8 JTD 8V · Automatic Transmission, EGR

Wiring	Colour
See 50 ENGINE	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	LB		See M010A ENGINE MANAGEMENT ECU (ENGINE)	15
2	0,75	AN	X	See K041 AIR FLOW METER	2
				See B001A JUNCTION UNIT (ENGINE)	6
				See B001A JUNCTION UNIT (ENGINE)	7
				See K084 SPEEDOMETER SENSOR	1
				See O007A OIL VAPOUR HEATING RESISTANCE (ENGINE)	1
				See L005 INJECTION PUMP THIRD PISTON DEACTIVATION SOLENOID VALVE	1
				See L030 EGR SOLENOID VALVE	2
				See O007B OIL VAPOUR HEATING RESISTANCE (ENGINE)	1
