J026 LPG supply remote control

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Relays › J026 LPG supply remote control

Connectors and pin-outsJ026 LPG supply remote control

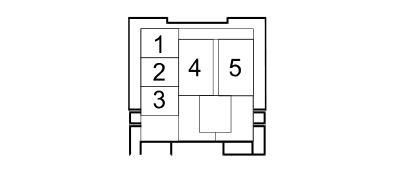

J026 LPG SUPPLY REMOTE CONTROL

2.0 16V · GPL

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
85	0,75	AN	X	See M018B LGP UNIT (FRONT)	34
				See J145 PGL RETURN SOLENOID VALVE REMOTE CONTROL	85
				See D188 ENGINE/LPG JUNCTION	B1
				See K185 LPG MOTOR DRIVEN PUMPCURRENT SENSOR	4
				See J024 LPG SOLENOID VALVE REMOTE CONTROL	85
86	0,75	LG		See M018A LGP UNIT (FRONT)	68
87	1,5	HN	X	See M018A LGP UNIT (FRONT)	80
				See N073A LGP ELECTRIC INJECTOR (FRONT)	2
				See N073B LGP ELECTRIC INJECTOR (FRONT)	2
				See N073C LGP ELECTRIC INJECTOR (FRONT)	2
				See M018A LGP UNIT (FRONT)	66
				See N073D LGP ELECTRIC INJECTOR (FRONT)	2
				See M018A LGP UNIT (FRONT)	59
				See D188 ENGINE/LPG JUNCTION	C3
30	1,5	R		See B034 LPG INJECTOR FUSE	1

2.0 16V · Methane

Wiring	Colour
See 12 FRONT	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
85	0,75	AN	X	See M019B METHANE INJECTION CONTROL UNIT (FRONT)	34
				See D193 METHANE / INJECTION COUPLING	B1
				See J025 METHANE SOLENOID RELAY	85
86	0,75	LG		See M019A METHANE INJECTION CONTROL UNIT (FRONT)	68
87	1,5	HN	X	See M019A METHANE INJECTION CONTROL UNIT (FRONT)	80
				See N072A METHANE INJECTOR (FRONT)	2
				See N072B METHANE INJECTOR (FRONT)	2
				See N072C METHANE INJECTOR (FRONT)	2
				See M019A METHANE INJECTION CONTROL UNIT (FRONT)	66
				See N072D METHANE INJECTOR (FRONT)	2
				See M019A METHANE INJECTION CONTROL UNIT (FRONT)	59
				See D193 METHANE / INJECTION COUPLING	C3
30	1,5	R		See B029 INJECTION FUSE	1
