J027 petrol supply cut out relay

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Relays › J027 petrol supply cut out relay

Connectors and pin-outsJ027 petrol supply cut out relay

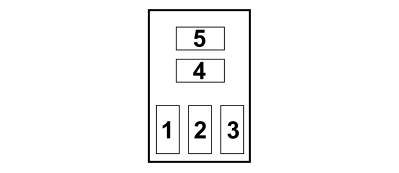

J027 PETROL SUPPLY CUT OUT RELAY

2.0 16V · Climate control, Methane

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	BN		See D193 METHANE / INJECTION COUPLING	C3
2	2,5	M		See B001A JUNCTION UNIT (ENGINE)	18
2	2,5	M		See B001A JUNCTION UNIT (ENGINE)	18
3	0,75	ZN		See D193 METHANE / INJECTION COUPLING	C8
5	2,5	BN		See D004A FRONT/ENGINE COUPLING (FRONT)

22 General
