J035 passenger compartment air fan relay

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Relays › J035 passenger compartment air fan relay

Connectors and pin-outsJ035 passenger compartment air fan relay

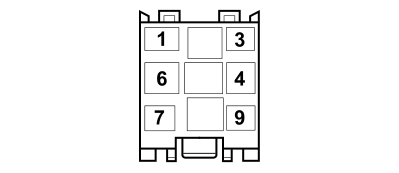

J035 PASSENGER COMPARTMENT AIR FAN RELAY

Supplementary air conditioner, Webasto (additional heater)

Wiring	Colour
See 65 AIR CONDITIONING	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2	0,5	CL		See D161B OPTIONAL DASHBOARD/AIR CONDITIONING COUPLING (AIR CONDITIONING)	1
4	2,5	B	X	See D180A AIR CONDITIONING/ADDITIONAL AIR CONDITIONING COUPLING (ADDITIONAL AIR CONDITIONER BRIDGE)	3
				See D161A OPTIONAL DASHBOARD/AIR CONDITIONING COUPLING (AIR CONDITIONING)	E
5	2,5	R		See D021 DASHBOARD/AIR CONDITIONING-HEATER COUPLING	B
6	2,5	RN	X	See J034 PASSENGER COMPARTMENT AIR FAN SPEED RELAY 1	5
				See H081 CLIMATE CONTROL FAN CONTROL	1
8	0,5	N	X	See J041 PASSENGER COMPARTMENT AIR FAN MAXIMUM SPEED RELAY	1
				See G045 AIR CONDITIONING/HEATER CONTROLS LIGHT	2
				See D181 HEATER/ADDITIONAL HEATER COUPLING	A
				See M070 CLIMATE CONTROL SYSTEM CONTROL UNIT	1
				See C016 AIR CONDITIONING UNIT EARTH	1
				See J034 PASSENGER COMPARTMENT AIR FAN SPEED RELAY 1	1
				See K086 FROST SENSOR	3
				See N085 PASSENGER COMPARTMENT AIR FAN	1
				See P050 CIGAR LIGHTER / CURRENT SOCKET	3
