P050 cigar lighter / current socket

Make

Fiat

Model

Ducato Factory Service Manual

Year

2002–2006

Section

Various consumers › P050 cigar lighter / current socket

Connectors and pin-outsP050 cigar lighter / current socket

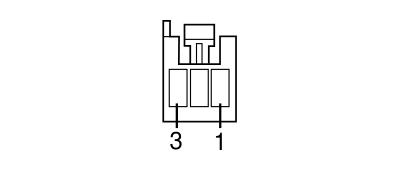

P050 CIGAR LIGHTER / CURRENT SOCKET

Supplementary air conditioner, Webasto (additional heater)

Wiring	Colour
See 65 AIR CONDITIONING	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	G	X	See D021 DASHBOARD/AIR CONDITIONING-HEATER COUPLING	C
				See M070 CLIMATE CONTROL SYSTEM CONTROL UNIT	6
				See G045 AIR CONDITIONING/HEATER CONTROLS LIGHT	1
2	1	RG		See D021 DASHBOARD/AIR CONDITIONING-HEATER COUPLING	A
3	1	N	X	See C016 AIR CONDITIONING UNIT EARTH	1
				See D181 HEATER/ADDITIONAL HEATER COUPLING	A
				See G045 AIR CONDITIONING/HEATER CONTROLS LIGHT	2
				See J034 PASSENGER COMPARTMENT AIR FAN SPEED RELAY 1	1
				See J035 PASSENGER COMPARTMENT AIR FAN RELAY	8
				See J041 PASSENGER COMPARTMENT AIR FAN MAXIMUM SPEED RELAY	1
				See K086 FROST SENSOR	3
				See M070 CLIMATE CONTROL SYSTEM CONTROL UNIT	1
				See N085 PASSENGER COMPARTMENT AIR FAN	1

Supplementary air conditioner

Wiring	Colour
See 65 AIR CONDITIONING	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	G	X	See D161A OPTIONAL DASHBOARD/AIR CONDITIONING COUPLING (AIR CONDITIONING)	C
				See M070 CLIMATE CONTROL SYSTEM CONTROL UNIT	6
				See G045 AIR CONDITIONING/HEATER CONTROLS LIGHT	1
2	1	RG		See D161A OPTIONAL DASHBOARD/AIR CONDITIONING COUPLING (AIR CONDITIONING)	A
3	1	N	X	See J041 PASSENGER COMPARTMENT AIR FAN MAXIMUM SPEED RELAY	1
				See G045 AIR CONDITIONING/HEATER CONTROLS LIGHT	2
				See D181 HEATER/ADDITIONAL HEATER COUPLING	A
				See M070 CLIMATE CONTROL SYSTEM CONTROL UNIT	1
				See C016 AIR CONDITIONING UNIT EARTH	1
				See J034 PASSENGER COMPARTMENT AIR FAN SPEED RELAY 1	1
				See K086 FROST SENSOR	3
				See N085 PASSENGER COMPARTMENT AIR FAN	1

Heater

Wiring	Colour
See 67 HEATER	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	G	X	See D021 DASHBOARD/AIR CONDITIONING-HEATER COUPLING	C
				See M070 CLIMATE CONTROL SYSTEM CONTROL UNIT	6
				See G045 AIR CONDITIONING/HEATER CONTROLS LIGHT	1
2	1	RG		See D021 DASHBOARD/AIR CONDITIONING-HEATER COUPLING	A
3	1	N	X	See G045 AIR CONDITIONING/HEATER CONTROLS LIGHT	2
				See D181 HEATER/ADDITIONAL HEATER COUPLING	A
				See M070 CLIMATE CONTROL SYSTEM CONTROL UNIT	1
				See C016 AIR CONDITIONING UNIT EARTH
				See N085 PASSENGER COMPARTMENT AIR FAN	1
